24 34 562 Replacing Mechatronics (GA6HP19Z TU) (N54)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: After completing work:
IMPORTANT:

After completion of work, check TRANSMISSION OIL LEVEL .

Use only approved TRANSMISSION OIL .

Failure to comply with this instruction will result in serious damage to the transmission.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove plates (2).

Fig 1: Identifying Retaining Plate
G09913918Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten nut.

Disconnect cable (1).

Installation note:

Adjusting cable:

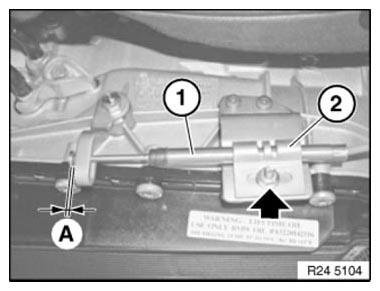

Fig 2: Locating Cable Nut
G06889506Courtesy of BMW OF NORTH AMERICA, INC.

Secure lever (1) with a cable tie (2) or wire in vertical position.

Fig 3: Securing Lever Using Cable Tie
G04726143Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Mechatronics can be destroyed by static discharges. Therefore the contacts inside the plug must not be touched. Insert special tool immediately after work step.

Unscrew plug (1) and disconnect.

Fig 4: Disconnecting Plug
G04726084Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 24 2 390 in sealing sleeve (1).

Fig 5: Inserting Special Tool 24 2 390 In Sealing Sleeve
G04726133Courtesy of BMW OF NORTH AMERICA, INC.

Remove TRANSMISSION OIL SUMP .

Unlock sealing sleeve with slide (1).

Fig 6: Unlocking Sealing Sleeve
G04726136Courtesy of BMW OF NORTH AMERICA, INC.

Note position of sealing sleeve.

Pull out sealing sleeve (1).

Installation note:

Screw in sealing sleeve partially (lug in upper area). Turn until lug engages in groove of transmission. Slide in sealing sleeve.

Lug on sealing sleeve must not be damaged!

Fig 7: Pulling Out Sealing Sleeve
G04726137Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: GA6HP19Z TU

Release all screws (1 and 2).

Remove Mechatronics.

Fig 8: Identifying Mechatronics Screws
G04726149Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check gaskets (1 and 2) for damage, replace gaskets if necessary.

Coat new seals with automatic transmission fluid and install.

Fig 9: Identifying Gaskets
G04726152Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert screws (3) alternately until contact is made with each screw head.

Insert all further screws contact is made with each screw head.

Fig 10: Identifying Screw Head Screws
G04726153Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: GA6HP19Z TU
IMPORTANT:

Tighten down screws in order 1...13.

Failure to comply with this requirement will result in serious damage to the automatic transmission.

Tightening torque 24 30 1AZ .

Fig 11: Automatic Transmission Valve Body (Mechatronics) Screws Tightening/Loosening Sequence
G06175576Courtesy of BMW OF NORTH AMERICA, INC.
