24 11 011 Removing and installing/sealing or replacing transmission oil sump (GA6HP19Z) (N54)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale transmission oil vapors.
Wear protective gloves.
Ensure adequate ventilation.

IMPORTANT:

Remove transmission sump only after it has cooled down.

After completion of work, check TRANSMISSION OIL LEVEL .

Use only approved TRANSMISSION OIL .

Failure to comply with this instruction will result in serious damage to the transmission.

Recycling:

Catch and dispose of escaping automatic transmission oil.

Observe country-specific waste disposal regulations.

Necessary preliminary tasks:

Remove UNDERBODY PROTECTION .

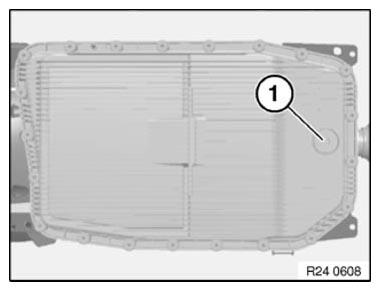

Remove oil drain plug (1).

Tightening torque: 24 11 2AZ .

Drain automatic transmission oil.

Installation note

Replace oil drain plug.

Fig 1: Identifying Oil Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

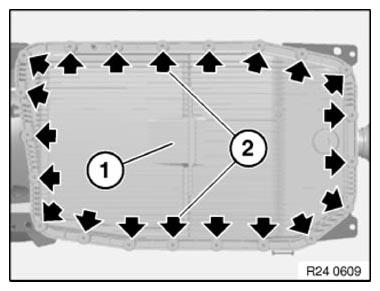

Unscrew all bolts.

Remove transmission oil sump (1).

Installation note:

Insert screws (2) until screw heads make contact.

Insert all further screws in diagonal sequence from inside to outside until screw heads make contact.

Tightening torque: 24 11 1AZ .

Fig 2: Locating Transmission Oil Sump Screws

Courtesy of BMW OF NORTH AMERICA, INC.

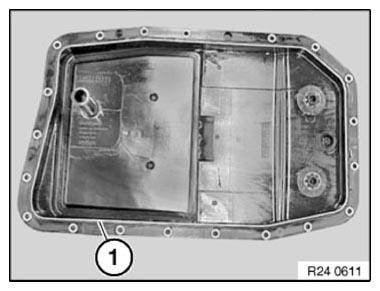

Remove gasket (1) from transmission sump.

Clean sealing faces and groove with a cloth.

Insert new gasket in transmission oil sump groove.

IMPORTANT: Do not degrease transmission oil sump with cleaning agent.

Fig 3: Identifying Transmission Oil Sump Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

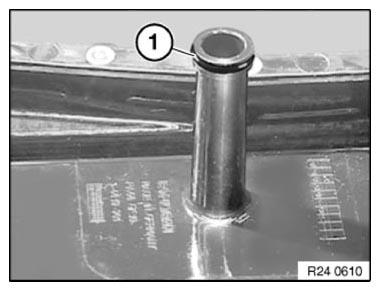

Replace sealing ring (1) on oil filter tube.

Fig 4: Identifying Sealing Ring On Oil Filter Tube

Courtesy of BMW OF NORTH AMERICA, INC.

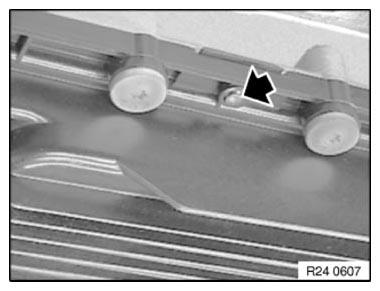

Installation note:

The gasket is correctly installed when it is engaged in the locating opening of the transmission oil sump.

Fig 5: Identifying Correct Installation Of Gasket

Courtesy of BMW OF NORTH AMERICA, INC.
