24 31 575 Replacing O-ring on oil pump (GA6HP19, GA6HP26Z) (N54, N63)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

24 1 180/184

IMPORTANT:

After completion of work, check TRANSMISSION OIL LEVEL .

Use only approved TRANSMISSION OIL .

Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks:

Remove AUTOMATIC TRANSMISSION
Secure transmission with TRANSMISSION RETAINING BRIDGE on assembly stand
Remove TORQUE CONVERTER
Remove MECHATRONICS

Remove adapter (1).

Installation note:

Note the installation position.

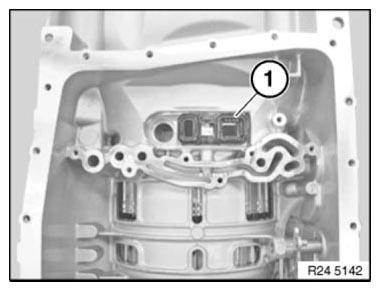

Fig 1: Identifying Adapter

G06889471

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 24 31 2AZ .

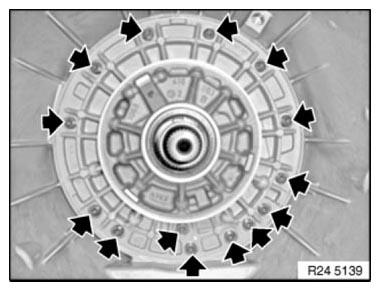

Fig 2: Identifying Torque Converter Screws

G06889472

Courtesy of BMW OF NORTH AMERICA, INC.

Slide clamping ring 24 1 184 completely into puller 24 1 180 .

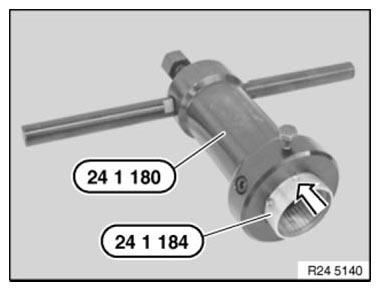

Fig 3: Sliding Special Tool 24 1 184 Completely Into Puller 24 1 180

G06889473

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 24 1 180 and secure with screw (1).

Insert screw (2) and release oil supply unit from transmission housing.

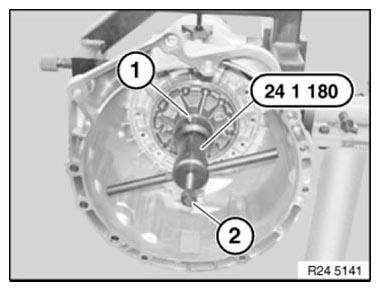

Fig 4: Removing Oil Supply Unit From Transmission Housing Using Special Tool 24 1 180

G06889474

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 24 31 1AZ .

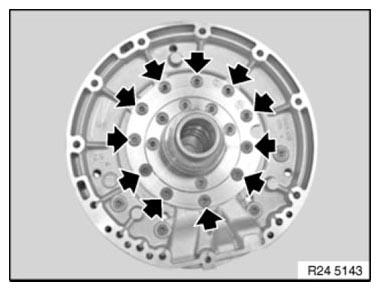

Fig 5: Identifying Transmission Housing Screws

G06889475

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cover (1) from pump body (2).

Replace O-rings (3 + 4).

Installation note:

Pay attention to installation position of gears during disassembly.

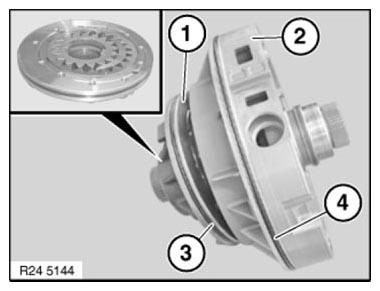

Fig 6: Identifying Installation Position Of Gears

G06889476

Courtesy of BMW OF NORTH AMERICA, INC.
