24 00 023 Removing and installing automatic transmission (GA6HP26Z) (N63)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT:

To prevent heavy damage to the engine block, the protruding thread of the transmission bolts absolutely must be checked for damage and corrosion before removal.

If there are signs of corrosion, the rust must be removed and the threads must be cleaned before removal.

Replace rusted, damaged screws.

Failure to comply with this instruction will result in serious damage to the engine block and transmission.

IMPORTANT:

After completion of work, check TRANSMISSION OIL LEVEL .

Use only approved TRANSMISSION OIL .

Failure to comply with this instruction will result in serious damage to the transmission.

Necessary preliminary tasks:

Disconnect BATTERY
Remove FAN COWL
Remove BOTH INTAKE SILENCER HOUSINGS
Remove underbody protection at front and rear. See REMOVING FRONT UNDERBODY PROTECTION and REMOVING REAR UNDERBODY PROTECTION .
Remove EXHAUST SYSTEM

Unfasten ground strap (1).

Remove plates (2).

Fig 1: Identifying Ground Strap And Plates

Courtesy of BMW OF NORTH AMERICA, INC.

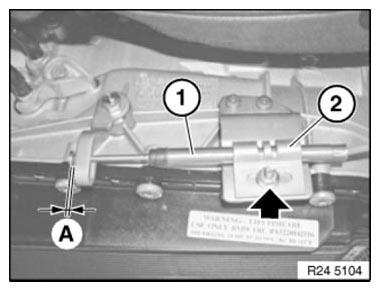

Unfasten nut.

Disconnect cable (1).

Installation note:

Unfasten nut.
Adjust cable by means of holder (2) until spacing A = 1 mm is obtained.
Tighten nut.

Fig 2: Identifying Cable Nut
Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove cover (2).

Tightening torque 24 00 1AZ .

Fig 3: Identifying Cover With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

When unflanging the transmission, pay attention to installation position of rubber plugs (1).

Fig 4: Identifying Rubber Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove crankshaft sensor.

Disengage cable from holder (2).

Fig 5: Identifying Cable Holder And Crankshaft Sensor Screw

Courtesy of BMW OF NORTH AMERICA, INC.

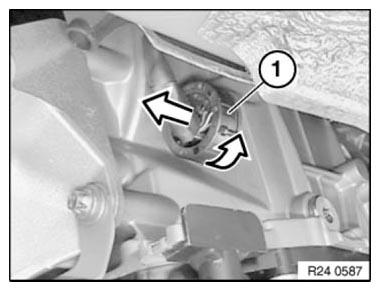

Unlock plug (1) by turning and disconnect
Release cable from retainers
Insert special tool 24 2 390 in sealing sleeve.

These tasks are described in NOTES ON MECHATRONICS .

(Important: Observe important note)

Fig 6: Turning Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Disconnect hydraulic lines (2) to transmission oil cooler.

Installation note:

Replace sealing rings.

Fig 7: Identifying Hydraulic Lines Of Transmission Oil Cooler With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Release hydraulic lines with holder.

Fig 8: Identifying Hydraulic Lines With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine at vibration damper in direction of rotation until screw (1) is visible in opening.

Release all 6 screws (1) on torque converter.

Tightening torque 24 40 1AZ .

Fig 9: Identifying Torque Converter Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Press special tool 24 1 380 together and insert into recess in transmission housing.

Fig 10: Inserting Into Recess In Transmission Housing Using Special Tool 24 1 380

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on left and right of axle.

Remove cover plate (2) on left and right of axle.

Remove bolt (3) on left and right of axle.

Tightening torque 31 10 1AZ .

Fig 11: Identifying Cover Plate, Bolt And Screws On Left And Right Of Axle

Courtesy of BMW OF NORTH AMERICA, INC.

Screw on special tool 11 8 910 .

Fig 12: Identifying Screw Of Special Tool 11 8 910

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust gap dimension (1) between transverse member and support using nuts (2).

Nuts (2) must be screwed down in opposite direction after gap dimension has been adjusted.

IMPORTANT: Gap dimension: 38 mm

Fig 13: Identifying Gap Dimension Between Transverse Member And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

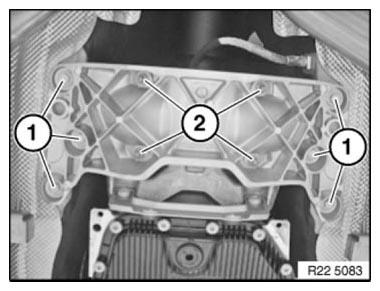

Release screws (1) and (2).

Remove transmission cross-member.

Tightening torque 22 32 3/4AZ .

Fig 14: Identifying Transmission Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove PROPELLER SHAFT

NOTE:

Bending the propeller shaft by an excessive angle can cause premature damage to the joint/propeller shaft!

Support engine with lifter when removing transmission.

Lower engine with transmission.

Then support transmission.

Supporting transmission:

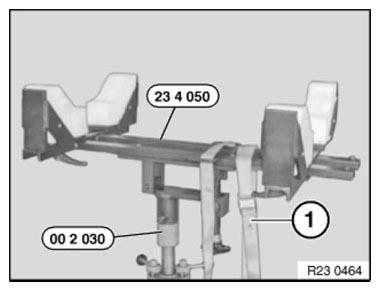

Support transmission with special tools 23 4 050 and 00 2 030 .

Secure transmission to mounting with tensioning strap (1).

Tasks are described in GEARBOX HOLDER .

After completion of work, check transmission oil level.

Fig 15: Supporting Transmission With Special Tools 23 4 050

Courtesy of BMW OF NORTH AMERICA, INC.

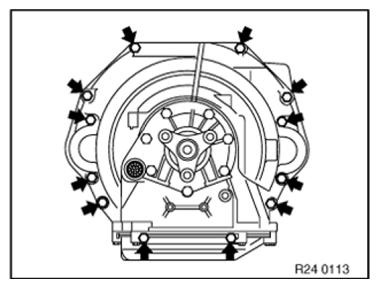

Release screws.

Tightening torque 24 00 1AZ .

Unflange transmission.

Fig 16: Identifying Transmission Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Bore (1) in driving disc must be accessible from opening on engine oil sump.

Check that adapter sleeves (2) are correctly seated.

Replace damaged fitting sleeves.

Fig 17: Identifying Driving Disc Bore And Adapter Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Rotate torque converter until bore in torque converter is flush with bore in driving disc.

Attach transmission input flange to engine output flange.
