23..... Universal transmission retaining bridge

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The transmission retaining bridge 24 0 200 is suitable for both manual and automatic transmissions

IMPORTANT: Adapters and spindles must be adapted for positive locking to the transmission.
(Risk of injury)

Adapt adapters (1) and spindle with thrust piece (3) to transmission.

Adapt length with slide (2).

Screw in spindle (4).

IMPORTANT: Before mounting on assembly stand 00 1 450, check retaining bridge for secure seating.

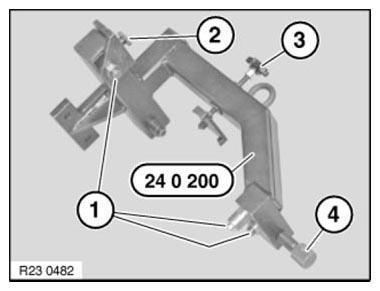

Fig 1: Identifying Adapters, Spindle With Thrust Piece To Transmission And Spindle Screw

Courtesy of BMW OF NORTH AMERICA, INC.
