24 31 010 Replacing torque converter shaft seal (GA6HP26Z) (N63)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove AUTOMATIC TRANSMISSION

IMPORTANT:

After completion of work, check TRANSMISSION OIL LEVEL .

Use only approved TRANSMISSION OIL .

Failure to comply with this instruction will result in serious damage to the transmission.

Secure transmission with special tool 24 0 200 on assembly stand 00 2 300 .

Remove TORQUE CONVERTER .

NOTE: Read and comply with note on installation of TRANSMISSION RETAINING BRIDGE .

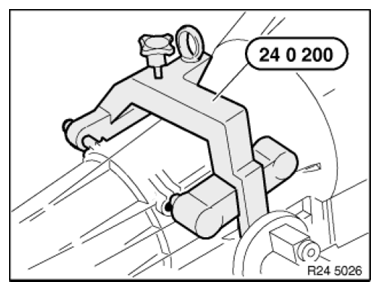

Fig 1: Removing Torque Converter Using Special Tool 24 0 200

G06889477

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 24 2 353 to input shaft (1).

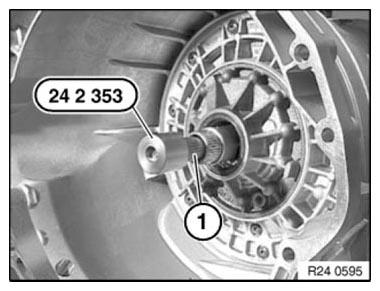

Fig 2: Connecting Input Shaft Using Special Tool 24 2 353

G06889478

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in special tool 24 2 351 until it is firmly connected with radial shaft seal.

Screw in special tool 24 2 352 to remove radial shaft seal.

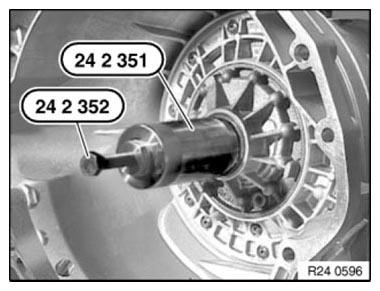

Fig 3: Removing Radial Shaft Seal Using Special Tool 24 2 352

G06889479

Courtesy of BMW OF NORTH AMERICA, INC.

Oil sealing lip on shaft seal.

Drive in radial shaft seal (1) with special tool 24 2 400 as far as it will go.

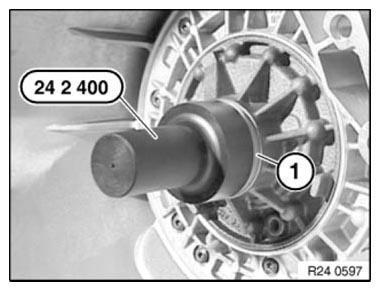

Fig 4: Connecting Radial Shaft Seal Using Special Tool 24 2 400

G06889480

Courtesy of BMW OF NORTH AMERICA, INC.
