51 11 157 Replacing front bumper trim

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front bumper trim
Remove front grille center section
If necessary, remove number/license plate holder
Remove middle grille
If necessary, remove cover for headlight washer system
Remove cover cap for tow lug
Version with Park Distance Control (PDC):
Remove ultrasonic transducer . See 66 20 518 REMOVING AND INSTALLING/REPLACING AN ULTRASONIC TRANSDUCER AT FRONT (OUTSIDE) (PARK DISTANCE CONTROL) or 66 20 520 REMOVING AND INSTALLING/REPLACING AN ULTRASONIC TRANSDUCER AT FRONT (INSIDE) (PARK DISTANCE CONTROL) .

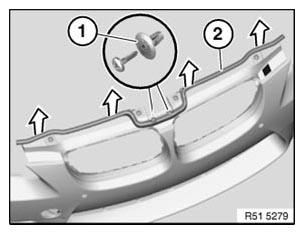

Release expander rivets (1) and pull off seal (2) upwards in direction of arrow.

Installation:

If necessary, replace faulty expander rivets (1).

Fig 1: Identifying Expander Rivets And Seal

Courtesy of BMW OF NORTH AMERICA, INC.

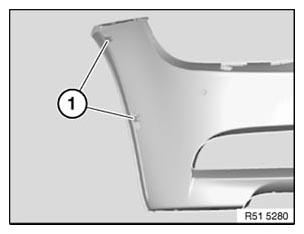

Remove sheet metal nuts (1) on left/right.

Installation:

If necessary, replace faulty metal nuts (1).

Fig 2: Identifying Sheet Metal Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Press down catches (2) on insert (1) and remove insert (1) in direction of arrow.

Fig 3: Identifying Catches And Insert

Courtesy of BMW OF NORTH AMERICA, INC.
