51 11 180 Removing and installing / replacing center grille for bumper trim

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front bumper trim
Version with ACC:
Remove cover for ACC sensor

6-cylinder models without ACC only:

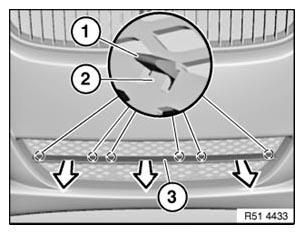

Release catches (1) from inside, taking care not to damage catch (2).

Remove trim (3) towards front.

Installation:

Catches (1 and 2) must not be damaged.

Fig 1: Identifying Catches And Catch

Courtesy of BMW OF NORTH AMERICA, INC.

Release catches (1) on bumper trim (2).

Installation:

Catches (1) on bumper trim (2) must not be damaged.

Fig 2: Identifying Catches And Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.
