51 11 ... Removing and installing/replacing cover for headlight cleaning system on left

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

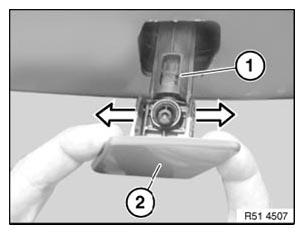

Pull out spray nozzle (1) by cover (2).

IMPORTANT: When releasing cover (2), grip spray nozzle (1) firmly and then allow to slide back slowly (risk of damage).

Release cover (2) sideways from spray nozzle (1).

Fig 1: Pulling Out Spray Nozzle By Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) on cover (2) must not be damaged.

Fig 2: Identifying Guides On Cover

Courtesy of BMW OF NORTH AMERICA, INC.
