51 11 156 Removing and installing front bumper trim (from 09/08)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Version with headlight washer system:

Remove cover for headlight washer system on left/right

Release screws (1) on bumper trim (2).

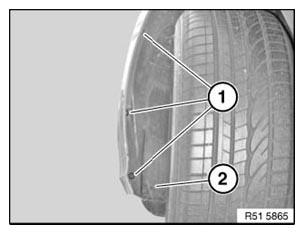

Fig 1: Identifying Screws And Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Release screws (1) on wheel arch trim (2).

Lift out wheel arch trim (2) at side.

Installation:

Make sure wheel arch trim (2) is in correct position.

Fig 2: Identifying Screws And Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Press wheel arch cover (1) to one side.

Release screws (2).

Fig 3: Identifying Wheel Arch Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on bumper trim (2).

Fig 4: Identifying Screws And Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not damage bumper trim when pulling off.

Detach bumper trim (1) at sides.

Pull bumper trim (1) forwards slightly and if necessary disconnect plug connections on ultrasonic sensors and/or fog lights.

Remove bumper trim (1) towards front with aid of a 2nd person.

Installation:

Height adjustment, refer to BODY GAP DIMENSIONS .

Fig 5: Identifying Bumper Trim
