33 32 125 Replacing a ball joint in lower steering knuckle/wheel carrier
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 33 4 465
- 33 4 466
- 33 4 474
- 33 4 475
- 33 4 481
- 33 4 482
See REAR AXLE - SPECIAL TOOLS .
NOTE:
E90, E91 from 09/2008:
For driving dynamic reasons, both ball joints must be replaced on first replacement. After replacing the rubber mounts, mark wheel carriers with punch marks. If the punch marks are provided, the ball joints can be changed again individually.
For driving dynamic reasons, both ball joints must be replaced on first replacement. After replacing the rubber mounts, mark wheel carriers with punch marks. If the punch marks are provided, the ball joints can be changed again individually.
Necessary preliminary tasks:
- Remove coil spring at rear
- If necessary, remove jointed rod of ride-height sensor from camber arm bracket
- Remove rear shock absorber from rubber mount
- Remove camber arm from wheel carrier
- Remove trailing arm from wheel carrier

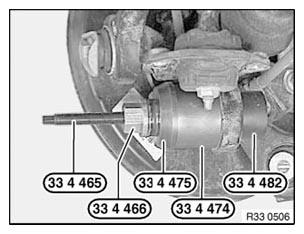

Pull out ball joint with special tools 33 4 465 , 33 4 466 , 33 4 475 , 33 4 474 and 33 4 482 .
Installation:

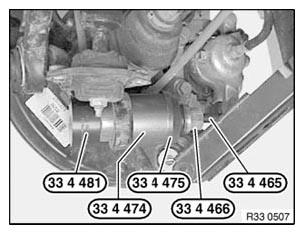

Draw in new ball joint with special tools 33 4 481 , 33 4 474 , 33 4 475 , 33 4 466 and 33 4 465 as far as it will go.
After installation:
- Perform chassis alignment check
