33 32 021 Replacing left or right trailing arm

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the trailing arm is detached from the rear axle carrier/wheel carrier, it is necessary after reinstallation to carry out a wheel/chassis alignment check.

Release nuts (1, 3).

Unscrew bolts.

Remove trailing arm (2) downwards.

Installation:

Note insertion direction of bolts.

Replace self-locking nuts.

Tightening torque (on rear axle carrier) 33 32 1AZ . See 33 32 CONTROL ARMS AND STRUTS .

Tightening torque (on wheel carrier) 33 32 2AZ . See 33 32 CONTROL ARMS AND STRUTS .

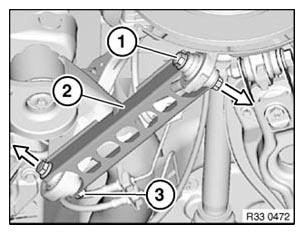

Fig 1: Identifying Trailing Arm, Nut And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Perform chassis alignment check
