33 53 000 Removing and installing / replacing rear left or right coil spring
Special tools required:
- 33 5 010
- 33 5 011
- 33 5 012
- 33 5 013
- 33 5 014
- 33 5 015
- 33 5 016
- 33 5 017
- 33 5 020
See REAR AXLE - SPECIAL TOOLS .
Avoid damaging the coil spring coating.
All the safety precautions and instructions contained in the Owner's Handbook must be strictly observed!
Failure to observe these safety precautions and instructions increases the risk of serious physical injury, damage to your health and damage to property and equipment!
- Prior to each use, check the special tools for defects, modifications and operational reliability.
- Damaged/modified special tools must not be used!
- No changes or modifications may be made to the special tools!
- These special tools are intended solely for the purpose of tightening and relieving cylindrical and tapered suspension springs.
- Keep special tools dry, clean and (down to the spindle) free from grease.
- Impact screwdrivers are prohibited!
- Do not compress coil spring to full extent.
Necessary preliminary tasks:
- Remove rear wheel . See WHEEL AND TIRES - REPAIR .
Removal:

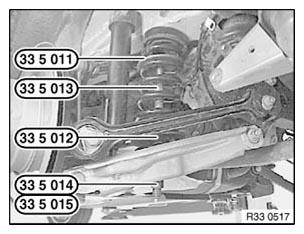

Insert lower spring plate 33 5 012 centrally into coil spring and turn to lowest coil.

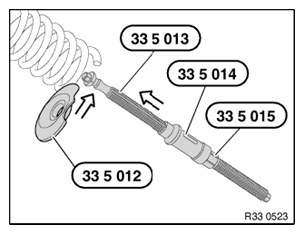

Guide spindles 33 5 013 , 33 5 014 , 33 5 015 from below through camber arm and lower spring plate 33 5 012 .

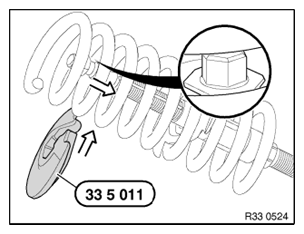

Insert upper spring plate 33 5 011 sideways into coil spring and turn to uppermost coil.
Pull spindle 33 5 013 downwards.
Make sure coil spring is correctly positioned in spring plates.
Check installation position of special tools 33 5 011 , 33 5 012 and 33 5 013 , 33 5 014 , 33 5 015 , correct if necessary.

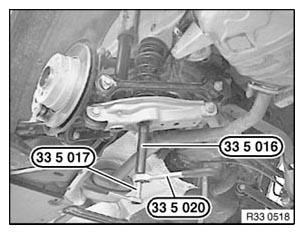

Tension coil spring using special tools 33 5 016 and 33 5 020 , gripping spindle of spring tensioner with special tool 33 5 017 in the process.
Remove coil spring upwards.
If necessary, relieve tension on coil spring.

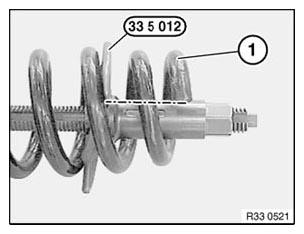

Bottom end of coil spring (1) must be flush with opening of spring plate 33 5 012 (see dotted-dashed line)!
Installation:

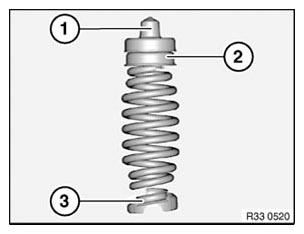

Check spring mounts (2, 3) for damage, replace if necessary.
Remove spring plate (1) and position with upper spring pad (2) on coil spring.
Version with rough road package: Install adapter as well.
- Lower spring pad must be positively seated in the designated receptacle in the camber armNOTE: Otherwise there is a risk of the coil spring jumping out sideways.

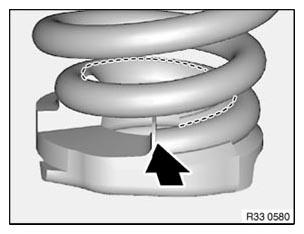

- Lower spring pad must come into contact with end of coil spring (see arrow)
- Lower spring pad must rest flush on last coil (see broken line)
Align coil spring by way of spring plate to opening in side member and relieve tension.
Remove special tools 33 5 011 , 33 5 012 and 33 5 013 , 33 5 014 , 33 5 015 .
After installation:
- Check headlight adjustment , correct if necessary. See 63 10 004 ADJUSTING HEADLIGHTS .
