33 00 ... Rear axle: wheel/chassis alignment check must be carried out after the following work

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

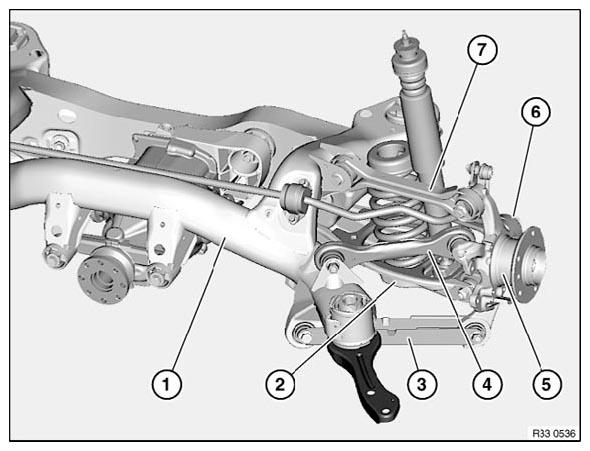

Fig 1: Identifying Rear Axle Components

Courtesy of BMW OF NORTH AMERICA, INC.

A wheel/chassis alignment check must be carried out after the following work:

Release of following screw/bolt connections:
- Camber arm to rear axle carrier / wheel carrier
- Trailing arm to rear axle carrier / wheel carrier
- Guide arm to rear axle carrier
- Toe arm to rear axle carrier / wheel carrier
- Control arm to rear axle carrier
Replacement of following parts:
1. Rear axle carrier
2. Camber arm / rubber mount / ball joint
3. Trailing arm / rubber mount
4. Guide arm
5. Wheel carrier / rubber mount / ball joint
6. Toe arm
7. Control arm
