11 12 106 Removing and installing right cylinder head (S65)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 2 250
11 5 290

See ENGINE - SPECIAL TOOLS .

Necessary preliminary tasks:

Remove exhaust system. See 18 00 018 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (S65) .
Remove right exhaust manifold. See 18 40 010 REMOVING AND INSTALLING/REPLACING LEFT EXHAUST MANIFOLD (S65) .
Remove right cylinder head cover .
Remove right inlet camshaft .
Remove right exhaust camshaft .
Partially unfasten engine wiring harness and lay to one side. See 12 51 001 REPLACING WIRING HARNESS SECTION FOR ENGINE (S65) .
Remove throttle valves from cylinders 1 to 4. See 13 54 045 REMOVING AND INSTALLING/SEALING A THROTTLE VALVE ASSEMBLY (S65) .
Remove thermostat housing .
Remove rear water pipe from cylinder head.

Release screws (1).

Remove coolant fitting (2).

Installation:

Replace seal.

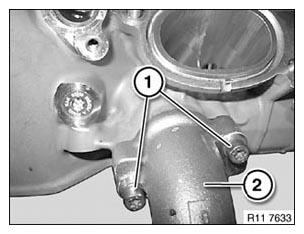

Fig 1: Identifying Coolant Fitting And Screws

G06203070

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

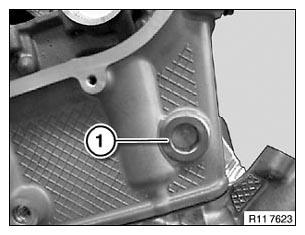

Fig 2: Identifying Screw

G06203071

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bearing pin (1) with special tool 11 5 290 .

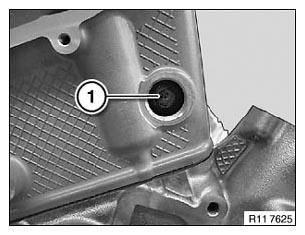

Fig 3: Identifying Bearing Pin

G06203072

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

IMPORTANT: Screws (1) can fall into the chain drive. Risk of damage to the timing chain.

Remove screw (1) with a magnet (2) from gearcase.

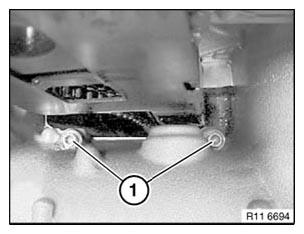

Fig 4: Identifying Screw And Gearcase

G06203073

Courtesy of BMW OF NORTH AMERICA, INC.

Release cylinder head bolt (1) with special tool 11 2 250 .

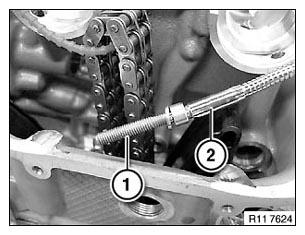

Fig 5: Identifying Cylinder Head Bolt

G06203074

Courtesy of BMW OF NORTH AMERICA, INC.

Release cylinder head bolts from outside to inside in sequence (10 to 1).

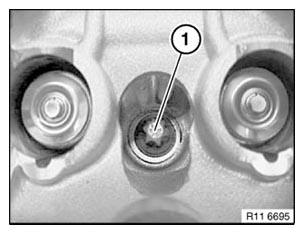

Fig 6: Identifying Cylinder Head Bolts

G06203075

Courtesy of BMW OF NORTH AMERICA, INC.

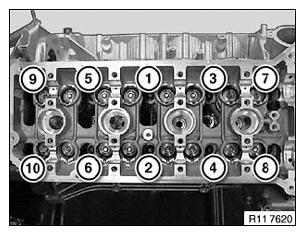

Fig 7: Right Cylinder Head Bolts Tightening/Loosening Sequence (S65)

G06203076

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Replace cylinder head gasket.
Check cylinder head for water leaks.

Installation:

Fit new cylinder head screws.

Fig 8: Right Cylinder Head Bolts Tightening/Loosening Sequence (S65)

G06203077

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down cylinder head bolts from inside to outside in sequence (1 to 10).

Tightening torque: 11 12 1AZ . See CYLINDER HEAD .

Insert bolts (1).

Fig 9: Identifying Cylinder Head Bolts

G04741528

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
