11 31 034 Removing and installing/replacing right inlet camshaft (S65)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Release screws (1).

Tightening torque: 11 12 2AZ  . See CYLINDER HEAD .

E Intake camshaft

A Exhaust camshaft.

IMPORTANT: Risk of mix-up with cylinder bank 5-8.
Arrow must point in direction of travel to chain drive.

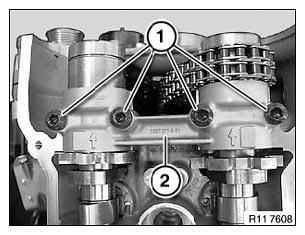

Fig 1: Identifying Inlet Camshaft Screws
G06203206Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lubricate all bearing points with engine oil.

NOTE: Illustration shows cylinders 5-8.

Release screws (1) from outside inwards in 1/2 turns.

Tightening torque: 11 12 2AZ  . See CYLINDER HEAD .

Installation:

Lubricate all bearing points with engine oil.

Fig 2: Identifying Bearing Cap Screws
G06203207Courtesy of BMW OF NORTH AMERICA, INC.

Check plain compression rings for damage and replace if necessary.

The plain compression rings have catches at the joint.

Press plain compression rings apart upwards and downwards and remove towards front.

IMPORTANT: Plain compression rings can break easily.
Fig 3: Pressing Plain Compression Rings Upwards And Downwards
G06203202Courtesy of BMW OF NORTH AMERICA, INC.

Insert inlet camshaft (1) for cylinders 1 to 4.

Designation (E1) on dihedron points upwards.

Cams on cylinders (1 and 3) point upwards at an angle.

Installation:

Lubricate all bearing points with engine oil.

Fig 4: Identifying Cams On Cylinders
G06203209Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

All bearing shells are assigned to one cylinder.

E and A from (1 to 8), e.g. E 1= inlet side on 1st cylinder.

Arrow (1) must point in direction of travel to chain drive.

Fig 5: Identifying Bearing Shells Mark
G04741660Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) from inside outwards in 1/2 turns.

Tightening torque: 11 12 2AZ  . See CYLINDER HEAD .

Installation:

Lubricate all bearing points with engine oil.

Fig 6: Identifying Bearing Cap Screws
G06203207Courtesy of BMW OF NORTH AMERICA, INC.

Adjust valve timing.

Assemble engine.
