18 00 018 Removing and installing complete exhaust system (S65)

Special tools required:

• 00 2 030
• 31 2 220

See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

See FRONT AXLE - SPECIAL TOOLS .

Necessary preliminary tasks:

• E93 only:  Remove tension strut  . See 51 71 482 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT TENSION STRUT (ON REAR AXLE) (FROM 03/2007) .

Support exhaust system with special tools 31 2 220  and 00 2 030  .

Disconnect all oxygen sensors.

The description refers only to one side of the two-flow exhaust system. The procedure is identical for both sides.

Fig 1: Supporting Exhaust System With Special Tools (31 2 220 And 00 2 030)

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts.

Replace self-locking nuts.

Tightening torque, see 18 40 2AZ  in 18 40 EXHAUST MANIFOLD, EXHAUST SYSTEM .

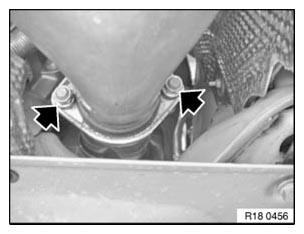

Fig 2: Locating Self-Locking Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque, see 18 40 3AZ  in 18 40 EXHAUST MANIFOLD, EXHAUST SYSTEM .

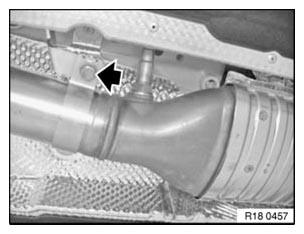

Fig 3: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove reinforcement plate.

Installation:

Tightening torque 24 Nm  .

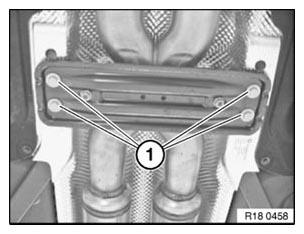

Fig 4: Identifying Reinforcement Plate Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts.

Tightening torque, see 18 40 4AZ  in 18 40 EXHAUST MANIFOLD, EXHAUST SYSTEM .

Fig 5: Identifying Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts.

Tightening torque, see 18 40 5AZ  in 18 40 EXHAUST MANIFOLD, EXHAUST SYSTEM .

Remove grounding strap.

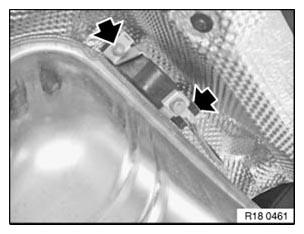

Fig 6: Locating Grounding Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on rear apron.

Unscrew nuts (2).

Tightening torque, see 18 40 5AZ  in 18 40 EXHAUST MANIFOLD, EXHAUST SYSTEM .

Lower exhaust system and remove with assistance of a second person.

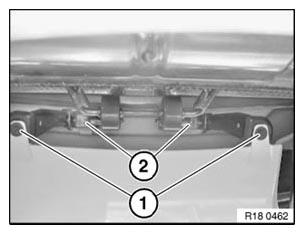

Fig 7: Identifying Screws And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Add final details to vehicle.

Check exhaust system for leaks.
