67 61 007 Removing and installing/replacing drive with gear (rear) for actuating slide/tilt sunroof (rear) (Sports Wagon)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BOTH TRIM PANELS FOR REAR ROOF PILLAR (C-pillars)
Remove both trim panels for rear roof pillar (D-pillars). See REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR REAR LEFT OR RIGHT ROOF PILLAR (D-PILLAR) or REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR REAR ROOF PILLAR (D-PILLAR WITH OPTION SA316 FROM 03/2006), LEFT OR RIGHT (AUTOMATIC REAR LID ACTUATION) .
Remove BOTH INTERIOR LIGHTS
Remove BOTH REAR GRAB HANDLES

NOTE:

Remove both rear and if necessary front counter supports for luggage compartment net.

Fold up cover (1).

Release screw (2) and remove counter support for luggage compartment net (3).

Fig 1: Identifying Dividing Net Mounts And Back Cover

G05506790

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off roofliner mucket in work area.

IMPORTANT:

Do not under any circumstance kink roofliner (1).

Unclip and lower roofliner (1) in rear area.

Unfasten plug connection (2) and disconnect.

NOTE:

Secure drive with gear for actuating slide/tilt sunroof (4) against falling out.

Release screws (3), tightening torque 54 13 1AZ .

NOTE:

Screws (3) are microencapsulated.

Remove drive with gear for actuating slide/tilt sunroof (4).

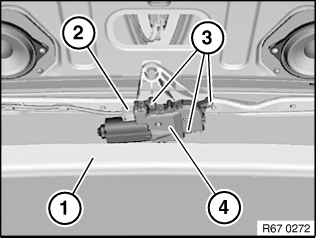

Fig 2: Identifying Drive With Gear, Plug Connection, And Screws

G00468799

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert gear wheel (1) of drive with gear for actuating slide/tilt sunroof (2) exactly in gear teeth (3).

Fig 3: Identifying Gear Wheel, Sunroof And Gear Teeth

G04728047

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Initialize SLIDE/TILT SUNROOF .
