63 31 015 Removing and installing/replacing left or right interior light (version with panorama glass sunroof) (Sports Wagon)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 341

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

Lever interior light (1) with special tool 00 9 341 in direction of arrow out of molded roofliner (2).

Disconnect associated plug connection and remove interior light (1).

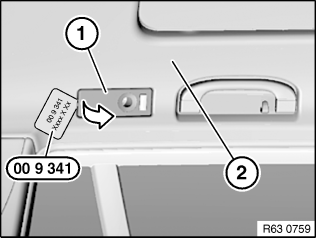

Fig 1: Using Special Tool (00 9 341) To Lever Out Interior Light

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, convert bulbs.
Note BULB TYPE .
