51 16 361 Replacing right glovebox

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove right Glovebox with housing
Remove Fastener For Glovebox
Remove Damper For Glovebox
Remove Glovebox Light
If necessary, remove Hotel Setting Switch

Release clips (1) and remove cover (2).

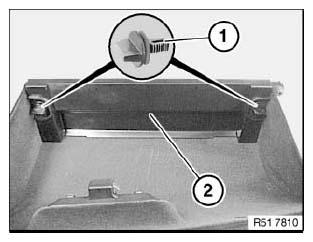

Fig 1: Identifying Clips And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all dummy platers.

Release screws (1) and remove locking catch (2) from glovebox housing.

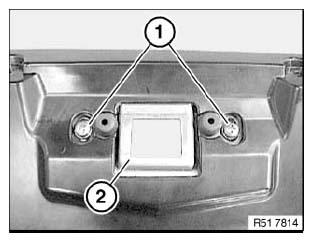

Fig 2: Identifying Locking Catch And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
