51 16 383 Removing and installing/replacing damper for glovebox

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Glovebox With Housing

Open glovebox.

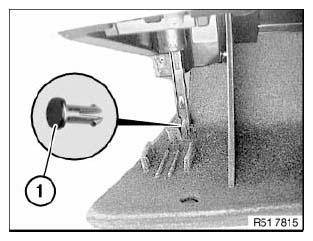

Release clip (1).

Fig 1: Identifying Clip

Courtesy of BMW OF NORTH AMERICA, INC.

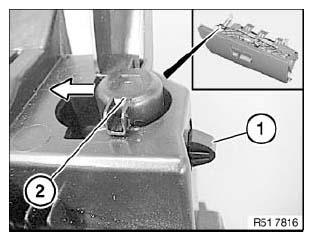

Press catch (1) together and slide damper (2) in direction of arrow.

Remove damper (2) in inward direction.

Fig 2: Identifying Catch And Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

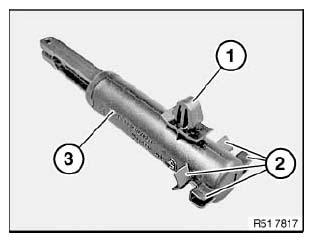

Catch (1) and guide (2) on damper (3) must not be damaged or missing.

Fig 3: Identifying Catch, Guide And Damper

Courtesy of BMW OF NORTH AMERICA, INC.
