51 16 201 Replacing storage compartment

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Storage Compartment
Remove Centre Armrest

Version with telephone:

Remove Eject Box

Version with rear cabin air conditioning:

First feed air duct (1) to right out of guide (2) and duct (3), then remove to left out of storage compartment.

Installation:

Seal (4) must not be damaged.

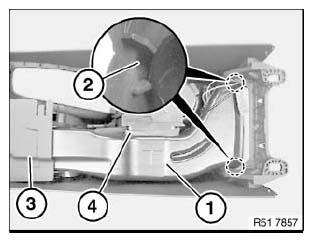

Fig 1: Identifying Feed Air Duct, Guide, Duct And Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Release catches (2) on coin holder (1) and remove coin holder (1) in inward direction.

Release catches (3) on multifunction storage compartment (4) and remove multifunction storage compartment (4).

If necessary, remove AV Connection Socket (5).

Remove socket (6).

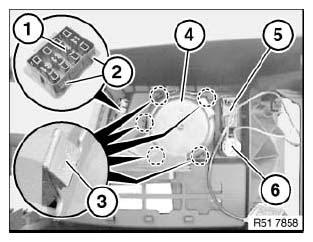

Fig 2: Identifying Catches, Coin Holder, Multifunction Storage Compartment And AV Connection Socket

Courtesy of BMW OF NORTH AMERICA, INC.
