51 16 206 Removing and installing / replacing centre armrest

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Move both front seats forwards

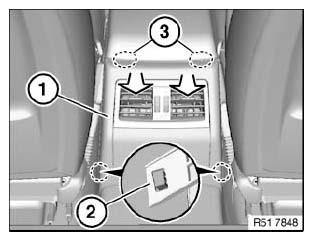

IMPORTANT: Grip behind trim (1) from below and release catch (2) (risk of damage).

Pull trim (2) towards rear and release from catches (3).

Fig 1: Identifying Trim And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1 and 3) must not be damaged.

Guides (2) must not be damaged.

If necessary, release Rear Compartment Fresh-Air Grille in order to install trim correctly.

Fig 2: Identifying Catches And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

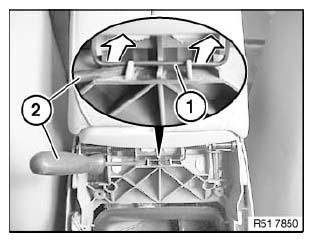

NOTE: Open centre armrest otherwise spring (1) will be under too much tension.

Disengage spring (1) with screwdriver (2).

Installation:

Make sure spring (1) is correctly seated.

Fig 3: Identifying Armrest Spring And Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

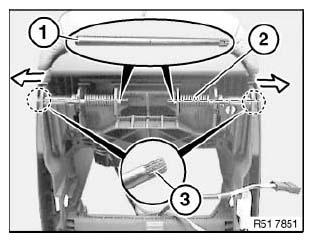

Drive out hinge shafts (1).

NOTE: Hinge shafts (1) are secured on the outside with toothing (3).

Remove spring (2), open centre armrest and feed out of storage compartment.

Fig 4: Identifying Hinge Shafts, Toothing And Spring

Courtesy of BMW OF NORTH AMERICA, INC.
