61 31 133 Removing and installing/replacing AV connection socket

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Grip behind trim (1) from below and release catch (2) (risk of damage).

NOTE: Version with rear air conditioning is shown.

Fig 1: Identifying Trim And Trim Catch

G04727600

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1 and 3) and guides (2) must not be damaged.

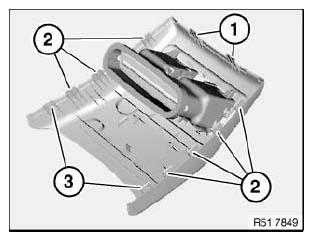

Fig 2: Identifying Trim Catches And Guides

G04727601

Courtesy of BMW OF NORTH AMERICA, INC.

Lever AV connection socket (1) with a suitable tool (2) upwards out of storage compartment (3).

Fig 3: Identifying AV Connection Socket, Tool And Storage Compartment

G04727602

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove AV connection socket (2) upwards out of storage compartment (3).

Installation:

Locks (4) must not be damaged.

Make AV connection socket (1) is correctly seated in storage compartment (3).
