Remove/Install Rear Axle Radius Rod - AR35.20-P-0111S

Model 223

MODIFICATION NOTES

13.04.2023

Screw/nut, strut rod to rear axle carrier

Model 223 except code Z07 (B7 Armoring on special protection version)

BA35.20-P-1001-03O

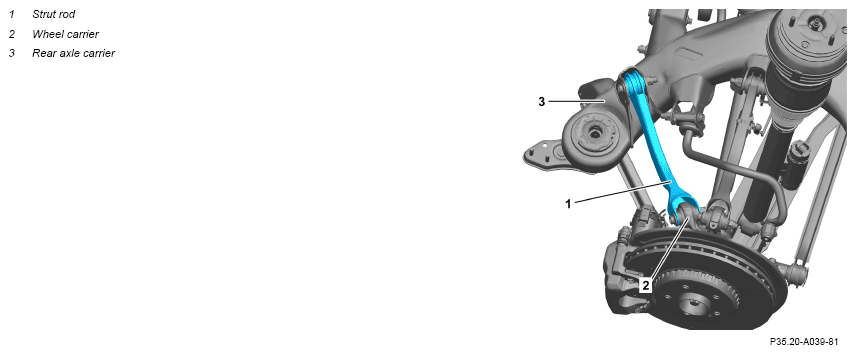

Fig 1: Rear Axle Radius Rod Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Lower rear axle until tension strut (1) is accessible.		AR35.10-P-0010S
2	Detach tension strut (1) from wheel carrier (2).	Screw/Nut, strut rod to wheel carrier	*BA35.20-P-1002-03O
		Model 223 except code Z07 (B7 armoring on special protection version) Screwdriver bit	Fig 2
3	Detach tension strut (1) from rear axle carrier (3) and remove tension strut (1).	Screw/Nut, strut rod to rear axle carrier	*BA35.20-P-1001-03O
		Model 223 except code Z07 (B7 armoring on special protection version) Screwdriver bit	Fig 2
	Check
4	Check strut rod (1) for condition and damage.	If there is a problem, ↓
		replace the strut rod (1).
5	Check elastomer bearing in wheel carrier (2) for condition and damage.	If there is a problem, ↓ replace elastomer bearing in wheel carrier (2). Model 223 with engine 176, 256, 279, 656 except code Z07 (B7 armoring on special protection version) Replace wheel carrier (2). Model 223 with code Z07 (B7 armoring on special protection version)	AR35.20-P-3402S
			AR35.20-P-0115S
6	Install in the reverse order.
	Measure
7	Perform wheel alignment measurement.		AR40.20-P-0200S

TORQUE STRUT

Number	Designation				Model 223 except code Z07 (B7 armoring on special protection version)	Model 223 with code Z07 (B7 armoring on special protection version)
BA35.20-P-1001-03O	Screw/Nut, strut rod to rear axle carrier	M12	Stage 1	Nm	60	-
			Stage 2	∠°	180	-
		M16	Stage 1	Nm	-	100
			Stage 2	∠°	-	180

TORQUE STRUT

Number	Designation				Model 223 except code Z07 (B7 armoring on special protection version)	Model 223 with code Z07 (B7 armoring on special protection version)
BA35.20-P-1002-03O	Screw/Nut, strut rod to wheel carrier	M12	Stage 1	Nm	60	-
			Stage 2	∠°	180	-
		M16	Stage 1	Nm	-	140
			Stage 2	∠°	-	180
		M14	Stage 1	Nm	-	-
			Stage 2	∠°	-	-

Fig 2: Identifying Screwdriver Bit (119 589 00 10 00)

Courtesy of MERCEDES-BENZ USA
