Remove/Install Complete Rear Axle - AR35.10-P-0010S

Model 223

Courtesy of MERCEDES-BENZ USA

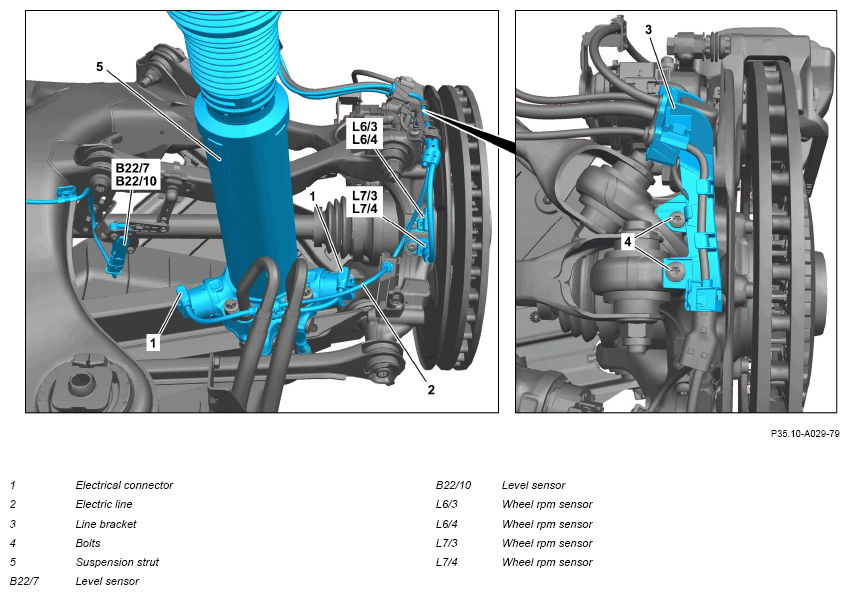

Shown on right side of vehicle with code 490 (Electrohydraulic suspension) and code 200 (Conditionally automated driving)

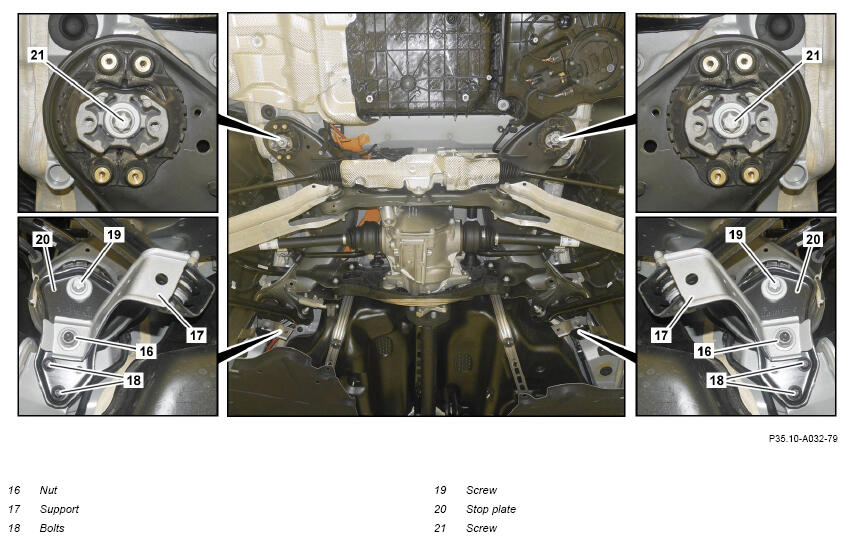

Shown on left side of vehicle except code Z07 (B7 armoring for special protection version)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

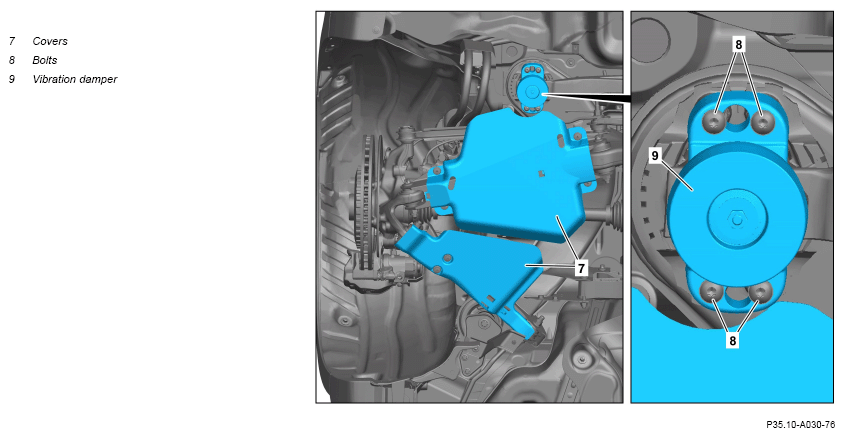

Shown with code 201 (Rear axle steering)

Courtesy of MERCEDES-BENZ USA

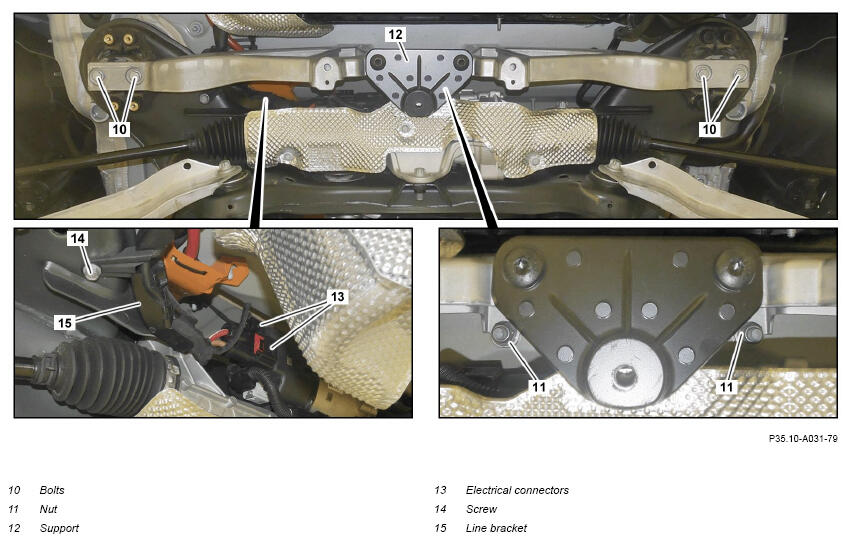

Shown with code 201 (Rear axle steering)

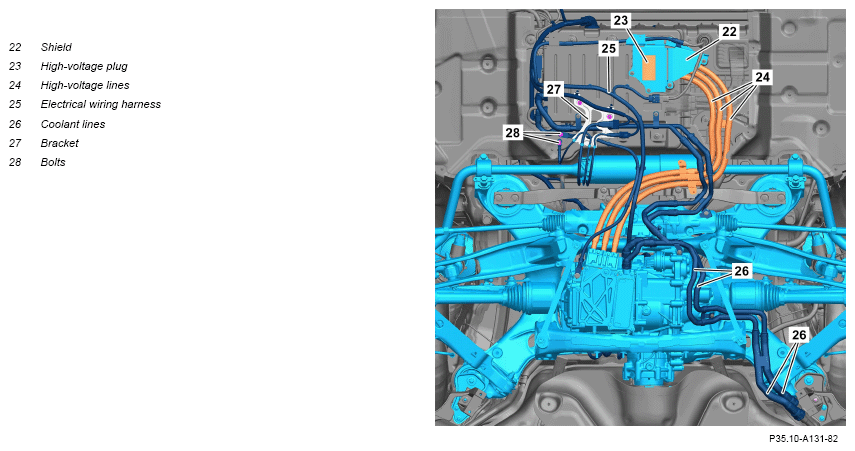

Shown with engine 177 and with code ME10 (Hybrid vehicle (Plug-in PHEV))

Courtesy of MERCEDES-BENZ USA

	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
Notice	Information on E-ACTIVE BODY CONTROL suspension		AH32.50-P-0002-01ME
Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
Notice	Notes on air suspension		AH32.22-P-1000-01T
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment		AH00.00-Z-0300-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Shift transmission to "N" position.
2	Secure vehicle on vehicle lift.		AR00.60-P-1006A
3	Reduce pneumatic pressure of suspension struts (5) using diagnostic system.
		The complete wheels must not touch the ground. Otherwise, the suspension struts (5) can be pre-damaged and subsequently malfunction.	AD00.00-P-2000-06FR
4	Drain the hydraulic pressure lines of the electrohydraulic suspension using guided diagnosis.	Model 223 with code 490 (Electrohydraulic suspension) The complete wheels must not touch the ground. Otherwise, the suspension struts (5) can be pre-damaged and subsequently malfunction. It is essential that the shutoff valves (5) at the suspension struts are closed.	AR32.50-P-0042S
5	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
6	Remove brake caliper with connected brake hoses and hang to one side free of tension.		AR42.10-P-0080S
7	Remove voltage of high-voltage on-board electrical system.	Model 223 with code ME10 (Hybrid vehicle (plug-in, PHEV)) Model 223 with engine 256 with code ME10 (Hybrid vehicle (plug-in, PHEV))	AR47.70-P-1000SE
		Model 223 with engine 177 with code ME10 (Hybrid vehicle (plug-in, PHEV))	AR47.70-P-1000FRH
8	Drain the low-temperature circuit coolant of the cooling system for the electric motor.	Model 223 with engine 177 with code ME10 (Hybrid vehicle (plug-in, PHEV))	AR20.00-P-1150AMS
9.1	Remove front part of rear underfloor paneling.	Model 223 with code Z07 (B7 armoring on special protection version)	AR61.30-P-1001S
9.2	Remove rear diagonal struts.	Model 223 except code Z07 (B7 armoring on special protection version)	AR61.10-P-5142S
10	Remove screening plate (22).	Model 223 with engine 177 with code ME10 (Hybrid vehicle (plug-in, PHEV)) Nut, protective metal sheet to power electronics/load compartment well	*BA08.10-P-1005-03E
11	Release and disconnect high-voltage plug (23), and fasten high-voltage lines (24) to rear axle.	Model 223 with engine 177 with code ME10 (Hybrid vehicle (plug-in, PHEV)) Ensure utmost care and cleanliness. Otherwise, damage to the high voltage components may occur.	AR47.70-P-0005-01SE
		Set of protective covers	Fig 1
12	Expose electrical wiring harness (25), and release and disconnect associated electrical connectors.	Model 223 with engine 177 with code ME10 (Hybrid vehicle (plug-in, PHEV)) Dismantling tool	Fig 2
13	Disconnect coolant lines (26) from underbody, remove from rear axle as well as from axle drive module, and fasten at rear on underbody.	Model 223 with engine 177 with code ME10 (Hybrid vehicle (plug-in, PHEV))	AR20.20-P-7441-01RQ
		Set of protective covers	Fig 1
14	Remove holder (27) with electric lines, and release and disconnect associated electrical connectors.	Model 223 with engine 177 with code ME10 (Hybrid vehicle (plug-in, PHEV)) Nut, bracket to power electronics bracket	*BA08.10-P-1006-03E
15	Unscrew screws (28), and remove equipotential bonding lines from underbody.	Model 223 with engine 177 with code ME10 (Hybrid vehicle (plug-in, PHEV)) Check contact areas for cleanliness and equipotential bonding lines for tight seating. Otherwise, life and limb may be endangered and the operation of high-voltage components without a correct connection to the ground connection is forbidden. : Make sure it is clean and fitted tightly. Screw, equipotential bonding line to underbody	*BA08.10-P-1009-01M
16	Remove propeller shaft.	Model 223 with engine 177.8	AR41.10-P-0050SCA
		Model 223 with engine 176, 256	AR41.10-P-0050S
		Model 223 with engine 656	AR41.10-P-0050SB
		Model 223 with engine 279 Make sure that the propeller shaft does not hang down under its own weight or that the propeller shaft is not angled by more than 8°. Otherwise, the propeller shaft intermediate bearing will be damaged.	AR41.10-P-0050SVZ
17	Disconnect electrical connectors (1) from left and right suspension strut (5).
18	Expose electric line (2) on left and right side of vehicle up to line bracket (3).	Model 223 with code 490 (Electrohydraulic suspension)
19.1	Disconnect electrical connector of wheel speed rpm sensor (L6/3) and wheel speed rpm sensor (L6/4).	Model 223 except code 200 (Conditionally automated driving)
19.2	Disconnect electrical connectors of wheel speed rpm sensors (L6/3, L7/3) and wheel speed rpm	Model 223 with code 200 (Conditionally automated driving)
	sensors (L6/4, L7/4).
20	Remove screws (4) on left and right side of vehicle and place line brackets (3) to one side.
21	Unclip electric line from holder of level sensor (B22/7) and level sensor (B22/10).
22	Disconnect electrical connectors of level sensors (B22/7, B22/10) and leave electric lines hanging down at one side.
23	Remove covers (7) under spring links and under thrust arms.	Model 223 with engine 176 Model 223 with engine 177 except code ME10 (Hybrid vehicle (plug-in, PHEV)) Model 223 with engine 256 Model 223 with engine 279 except code Z07 (B7 armoring on special protection version) Model 223 with engine 656
24	Remove screws (8) from left and right vibration damper (9) and remove vibration dampers (9).	Model 223 with engine 176 Model 223 with engine 177 except code ME10 (Hybrid vehicle (plug-in, PHEV)) Model 223 with engine 256 Model 223 with engine 279 Model 223 with engine 656 Screw, vibration damper to rear elastomer bearing of rear axle carrier	*BA35.10-P-1012-01R
25	Remove screws (10).	Model 223 except code Z07 (B7 armoring on special protection version)
26	Remove nuts (11) and remove support (12).	Model 223 except code Z07 (B7 armoring on special protection version) Nut, support to rear-end floor	*BA35.10-P-1009-01R
27	Disconnect electrical connectors (13).	Model 223 with code 201 (Rear axle steering) Model 223 with code 216 (Rear axle steering with large angle)
28	Remove screw (14) and leave line bracket (15) hanging down at one side.	Model 223 with code 201 (Rear axle steering) Model 223 with code 216 (Rear axle steering with large angle)
29.1	Remove rear axle springs.	Model 223 with code Z07 (B7 armoring on special protection version)	AR32.20-P-0232SG
29.2	Remove suspension struts (5) from spring links.	Model 223 except code Z07 (B7 armoring on special protection version) Nut, suspension strut at rear to spring control arm	*BA32.25-P-1005-04O
30	Remove fuel metering pump with holder and hang to one side with connected lines.	Model 223 with code 228 (Additional warm water heating)	AR83.70-P-5652S
31	Remove nuts (16) and remove bracings (17).	Model 223 except code Z07 (B7 armoring on special protection version) Nut, support diagonal strut to stop plate	*BA61.10-P-1020-01P
32	Remove screws (18).	Bolt, stop plate to body	*BA35.10-P-1002-01R
33	Position lifting platform with mount onto rear axle and secure with tensioning strap.
	000 588 25 62 00 Lift table		WS01.00-P-0264A
34	Unscrew screws (19) and remove stop plates (20).	Do not use an impact wrench. Otherwise, the threads will be damaged.
		: Use compressed air to clean thread in frame floor assembly and check for correct seating of threaded inserts. Self-locking bolt securing front elastomer bearing of rear axle carrier to frame floor assembly	*BA35.10-P-1001-01R
35	Remove bolts (21).	Do not use an impact wrench. Otherwise, the threads will be damaged. : Use compressed air to clean thread in frame floor assembly and check for correct seating of threaded inserts. Self-locking bolt securing rear elastomer bearing of rear axle carrier to frame floor assembly	*BA35.10-P-1003-01R
36	Lower rear axle completely.
37	Install in the reverse order.
38	Perform wheel alignment measurement.		AR40.20-P-0200S

Fig 1: Identifying Set Of Protective Covers (001 589 11 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
