Remove/Install Rear Axle Elastomer Bearing Of Strut Rod On Wheel Carrier - AR35.20-P-3402S

Model 223 with engine 176, 256, 279, 656

except code Z07 (B7 armoring on special protection version)

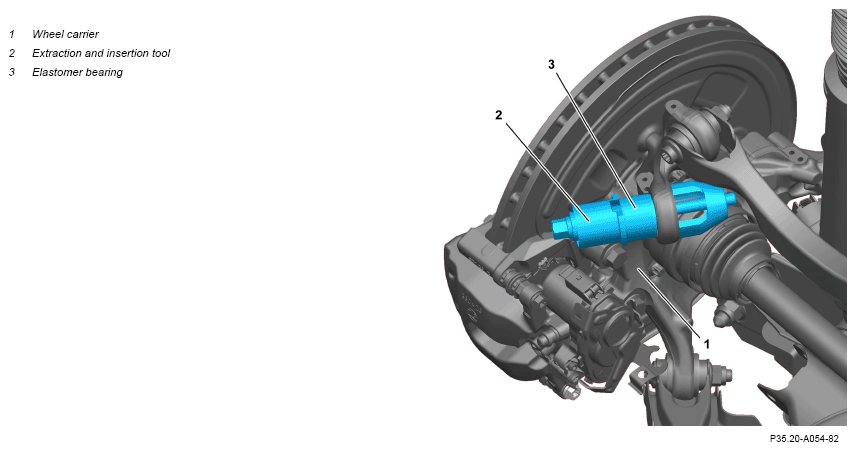

Removal, shown on right side of vehicle with removed tension strut

Courtesy of MERCEDES-BENZ USA

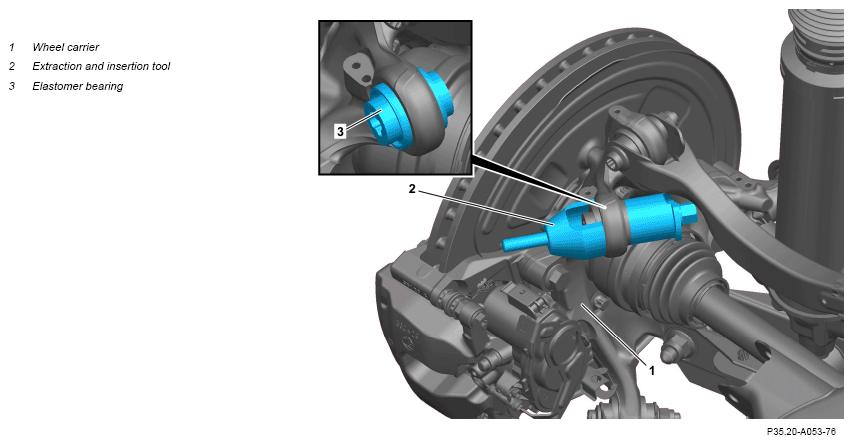

Installation, shown on right side of vehicle with removed tension strut

Courtesy of MERCEDES-BENZ USA

Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove
1	Remove tension strut from wheel carrier (1) and slide upwards.	Do not remove rear axle.	AR35.20-P-0111S
2	Grease spindle of extraction and insertion tool (2) with rolling-element bearing grease.
	High temperature antifriction bearing grease (NLGI grade 2)		BB00.40-P-0265-01A
		Extraction and insertion tool	Fig 2
3	Position extraction and insertion tool (2) on wheel carrier (1) and elastomer bearing (3) as shown.	The spindle (205 589 01 43 02), washer (205 589 01 43 05) and washer (205 589 01 43 06) from the extraction and insertion tool are required. Extraction and insertion tool	Fig 2
		Extraction and insertion tool	Fig 1
4	Pull elastomer bearing (3) out of wheel carrier (1) and remove.
	Install
5	Clean bearing seat in wheel carrier (1).
6	Coat new elastomer bearing (3) with insertion agent.	Mobil Vacuoline 137 insertion agent, 0.5 L	*BR00.45-Z-1097-06A
7	Grease spindle of extraction and insertion tool (2) again with rolling-element bearing grease.
	High temperature antifriction bearing grease (NLGI grade 2)		BB00.40-P-0265-01A
		Extraction and insertion tool	Fig 2
8	Position extraction and insertion tool (2) with new elastomer bearing (3) as shown on wheel carrier (1).	The spindle (205 589 01 43 02), washer (205 589 01 43 05) and washer (205 589 01 43 06) from the extraction and insertion tool are required. Extraction and insertion tool	Fig 2
		Extraction and insertion tool	Fig 1
9	Pull new elastomer bearing (3) into wheel carrier (1).	Pull elastomer bearing (3) in until protrusion at wheel carrier (1) is equal on both sides. The elastomer bearing (3) must be seated centrally in the wheel carrier (1).
10	Remove extraction and insertion tool (2).
11	Mount tension strut onto wheel carrier (1).		AR35.20-P-0111S

Fig 1: Identifying Extraction And Insertion Tool (223 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Extraction And Insertion Tool (205 589 01 43 00)

Courtesy of MERCEDES-BENZ USA
