Remove/Install Stabilizer Bar On Rear Axle - AR32.35-P-2210S
Model 223
except code 490 (Electrohydraulic suspension)
Shown with engine 656 and with code 201 (Rear axle steering)
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Remove rear axle steering. | Model 223 with code 201 (Rear axle steering) except code 490 (Electrohydraulic suspension) Model 223 with code 216 (Rear axle steering with large angle) |
|
| except code 490 (Electrohydraulic suspension) |
AR46.80-P-4000S | ||
| 2 | Lower rear axle at front. | Model 223 except code 490 (Electrohydraulic suspension) except code Z07 (B7 armoring on special protection version) |
AR35.10-P-0010S |

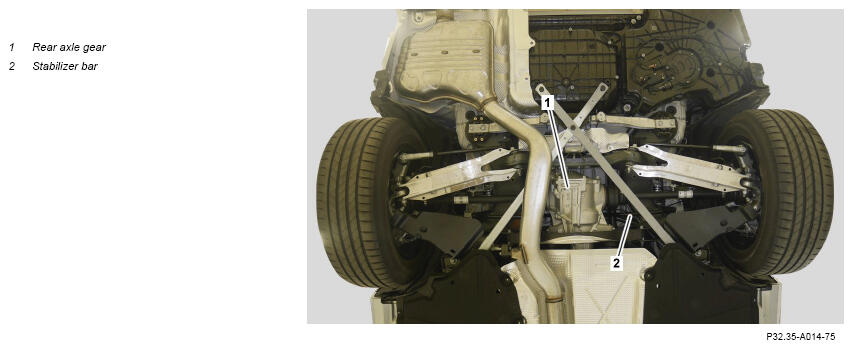

| 3 | Lower rear axle differential (1) until stabilizer (2) can be removed. | Model 223 with code Z07 (B7 armoring on special protection version) except code 490 (Electrohydraulic suspension) |
AR35.31-P-0522SG |
| Model 223 with engine 176, 256, 279, 656 except code 490 (Electrohydraulic suspension) except code Z07 (B7 armoring on special protection version) | AR35.31-P-0522S | ||

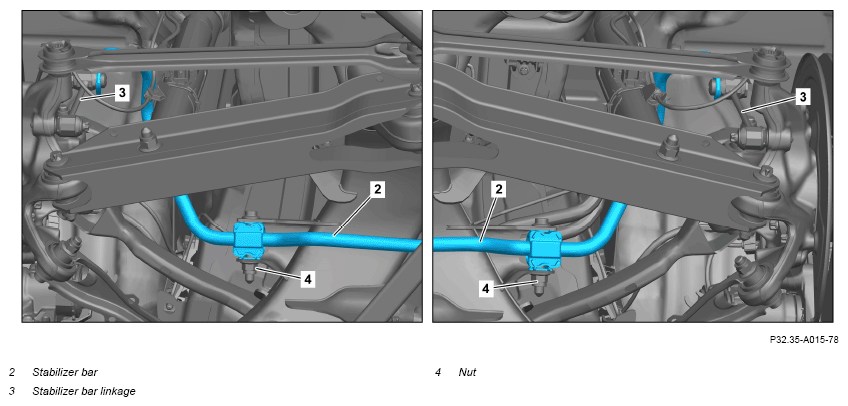

| 4 | Detach torsion bar linkages (3) from stabilizer (2). | except code 201 (Rear axle steering) except code 216 (Rear axle steering) except code 490 (Electrohydraulic suspension) except code Z07 (B7 armoring on special protection version) Model 223 with code 201 (Rear axle steering) with code 216 (Rear axle steering) except code 490 (Electrohydraulic suspension) Model 223 with code Z07 (B7 armoring on special protection version) except code 490 (Electrohydraulic suspension) Screw/Nut, torsion bar linkage to torsion bar |
*BA32.20-P-1002-04V |
| 5 | Detach nuts (4) and remove screws. | except code 201 (Rear axle steering) except code 216 (Rear axle steering) except code 490 (Electrohydraulic suspension) except code Z07 (B7 armoring on special protection version) Model 223 with code Z07 (B7 armoring on special protection version) except code 490 (Electrohydraulic suspension) Nut, torsion bar to rear axle carrier |
*BA32.20-P-1001-04V |
| 6 | Remove stabilizer (2) to one side above lowered rear axle differential (1). | ||
| Check | |||
| 7 | Check elastomer bearings of stabilizer (2) for damage and wear. | If there is a problem, ↓ replace stabilizer (2). |
|
| 8 | Install in the reverse order. |
REAR AXLE TORSION BAR
| Number | Designation | Model 223 with code Z07 (B7 armoring on special protection version) | Model 223 with code 201 (Rear axle steering) with code 216 (Rear axle steering) | |
|---|---|---|---|---|
| BA32.20-P-1001-04V | Nut, torsion bar to rear axle carrier | Nm | 80 | - |
REAR AXLE TORSION BAR
| Number | Designation | Model 223 except code 201 (Rear axle steering) except code 216 (Rear axle steering) except code Z07 (B7 armoring on special protection version) | |
|---|---|---|---|
| BA32.20-P-1001-04V | Nut, torsion bar to rear axle carrier | Nm | 70 |
REAR AXLE TORSION BAR
| Number | Designation | Model 223 with code Z07 (B7 armoring on special protection version) | Model 223 with code 201 (Rear axle steering) with code 216 (Rear axle steering) | |
|---|---|---|---|---|
| BA32.20-P-1002-04V | Screw/Nut, torsion bar linkage to torsion bar | Nm | 60 | 50 |
REAR AXLE TORSION BAR
| Number | Designation | Model 223 except code 201 (Rear axle steering) except code 216 (Rear axle steering) except code Z07 (B7 armoring on special protection version) | |
|---|---|---|---|
| BA32.20-P-1002-04V | Screw/Nut, torsion bar linkage to torsion bar | Nm | 60 |
