Remove/Install Extinguishing Agent Line In Right Engine Compartment - AR86.10-P-0130SG

Model 223

with code Z07 (B7 armoring on special protection version)

with code Z21 (Fire extinguishing system)

Courtesy of MERCEDES-BENZ USA

	Remove/install

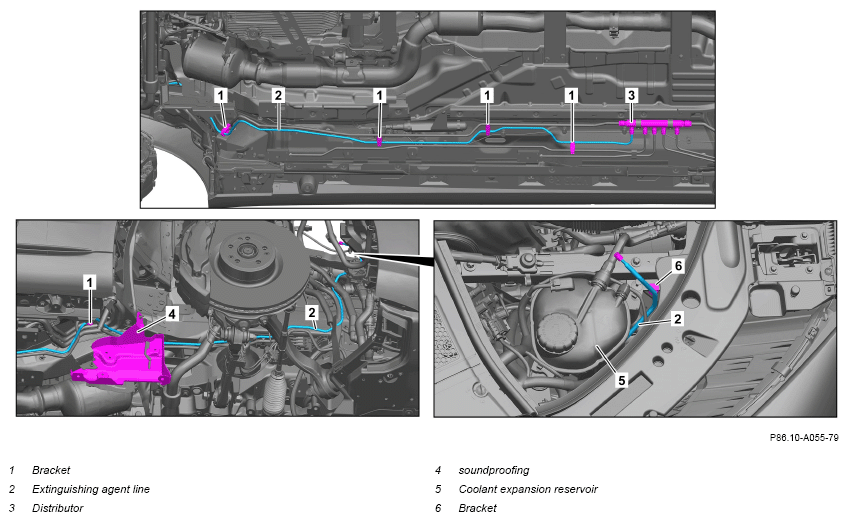

1	Remove center armor plate, rear armor plate, front right armor plate and top front right armor plate.		AR61.40-P-1001S
2	Remove front right diagonal strut.		AR61.10-P-5141S
3	Remove coolant expansion reservoir (5).	Model 223 with engine 279 with code Z07 (B7 armoring on special protection version) with code Z21 (Fire extinguishing system)
			AR20.30-P-4949SVZ
4	Expose extinguishing agent line (2) on bracket (6).
5	Remove front right wheel and tire assembly.		AR40.10-P-1102A
6	Remove right front fender liner.		AR88.10-P-1301S
7	Expose extinguishing agent line (2) on brackets (1).
8	Remove union nut for extinguishing agent line (2) and carefully remove extinguishing agent line (2) from distributor (3).
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
		Threaded connections for fire extinguisher agent lines	*BA86.10-P-1018-01E
9	Remove noise capsule (4).
10	Guide out extinguishing agent line (2) downward.
11	Install in the reverse order.
