Front Diagonal Struts Removal And Installation - Ar61.10-P-5141S
Model 223

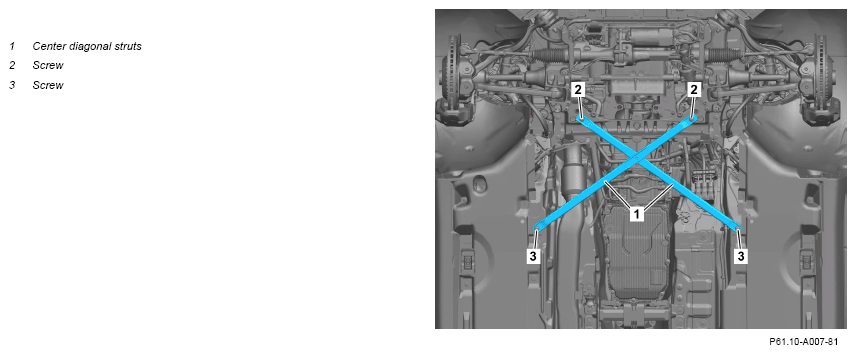

Shown with code 490 (Electrohydraulic suspension) and with code M005 (Vehicles with 4MATIC/all-wheel drive)
Shown with engine 279, except code 490 (Electrohydraulic suspension) and with code M005 (Vehicles with 4MATIC/all-wheel drive)
Shown with engine 177.8 with code ME10 (Hybrid vehicle (plug-in, PHEV))
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Model 223 with engine 177.8 with code ME10 (Hybrid vehicle (plug-in, PHEV)) |
|||
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 223 with engine 177.8 with code ME10 (Hybrid vehicle (plug-in, PHEV)) |
AH00.00-Z-0300-01A |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove rear and center engine compartment lining. | AR61.20-P-1105S | |
| 2 | Remove rear fender liner at the front. | To remove outer diagonal struts (4). | |
| AR88.10-P-1301S | |||
| 3 | Release side under floor paneling in front area. | Model 223 except code Z07 (B7 armoring on special protection version) To remove outer diagonal struts (4). |
|
| AR61.30-P-1001S | |||
| 4 | Unscrew screw (5). | Model 223 with engine 177.8 with code ME10 (Hybrid vehicle (plug-in, PHEV)) |
|
with code ME10 (Hybrid vehicle (plug-in, PHEV)) except code Z07 (B7 armoring on special protection version) |
*BA61.10-P-1023-01P | ||
| Screw control valve for low-temperature bracket to diagonal strut | |||
| 5 | Unscrew screws (2) of center diagonal struts (1) or outer diagonal struts (4). | *BA61.10-P-1014-01P | |
| 6 | Unscrew screws (3) of center diagonal struts (1) or outer diagonal struts (4). | *BA61.10-P-1014-01P | |
| 7 | Remove center diagonal struts (1) or outer diagonal struts (4). | ||
| 8 | Install in the reverse order. |
FRAME FLOOR
| Number | Designation | Model 223 except code Z07 | Model 223 with code Z07 | ||
|---|---|---|---|---|---|
| BA61.10-P-1014-01P | Bolt, front diagonal strut to front axle carrier/body/front diagonal strut | M8 | Nm | 17 | - |
| M10 | Nm | 50 | 50 | ||
FRAME FLOOR
| Number | Designation | Model 223 except code Z07 | |
|---|---|---|---|
| BA61.10-P-1023-01P | Screw control valve for low-temperature bracket to diagonal strut | Nm | 8 |
