Remove/Install Coolant Expansion Reservoir - AR20.30-P-4949SVZ

Engine 279 in model 223

Courtesy of MERCEDES-BENZ USA

	Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA
	Notes on coolant level		AH20.00-P-1142-01CW
	Remove/install

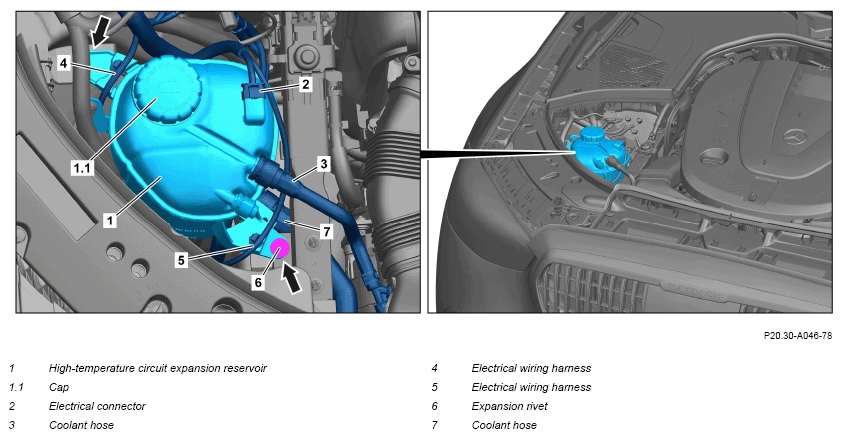

1	Carefully open cap (1.1), release overpressure, and remove cap (1.1) from high-temperature circuit expansion reservoir (1).
2	Suction off coolant from high-temperature circuit expansion reservoir (1).	Hand pump	Fig 2
3	Release and disconnect the electrical connector (2).
4	Remove coolant hose (3) from high-temperature circuit expansion reservoir (1).	Capture escaping coolant using suitable means.	AR20.20-P-7441-01RQ
5	Remove electrical wiring harnesses (4, 5) from high-temperature circuit expansion reservoir (1).	Dismantling tool	Fig 1
6	Remove expansion rivet (6).	Dismantling tool.	Fig 1
7	Carefully pull high-temperature circuit expansion reservoir (1) out of elastomer bearings until coolant hose (7) is accessible.
8	Clamp off coolant hose (7) with clamping device.	Clamp	Fig 3
9	Remove high-temperature circuit expansion reservoir (1) from coolant hose (7).	Capture escaping coolant using suitable means	AR20.20-P-7441-01RQ
10	Remove high-temperature circuit expansion reservoir (1).	Moisten elastomer bearings (arrows) at mounts for high-temperature circuit expansion reservoir (1) with lubricant. Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
	Check
11	Check elastomer bearings (arrows) for damage.	If damage is present: ↓ replace damaged elastomer bearing (arrows).
12	Install in the reverse order.
	Check
13	Check coolant level and correct if necessary.	Cooling system	*BF20.00-P-1001-02GA
14	Check high-temperature circuit for leaks.		AR20.00-P-1011SVZ

COOLING SYSTEM

Number	Designation				Engine 279 in model 223
BF20.00-P-1001-02GA	Cooling system	Workshop replacement amount	Main circuit	Liter	≈ 16, 0
		Workshop replacement amount	Low-temperature circuit	Liter	≈ 5, 0
		Antifreeze/water	Down to -37°C	%	50/50
			-38°C and below	%	55/45
			Fluids specifications		BB00.40-P-0310-01A
			Fluids specifications		BB00.40-P-0325-06A
			Fluids specifications		BB00.40-P-0326-06A

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Clamp (000 589 40 37 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 L	A 000 989 03 67
