Drain/Pour In Coolant - AR20.00-P-1142SVZ
Engine 279 in model 223
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. | AS20.00-Z-0001-01A | |
| Wear protective gloves, protective clothing and safety glasses. | |||
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove | |||

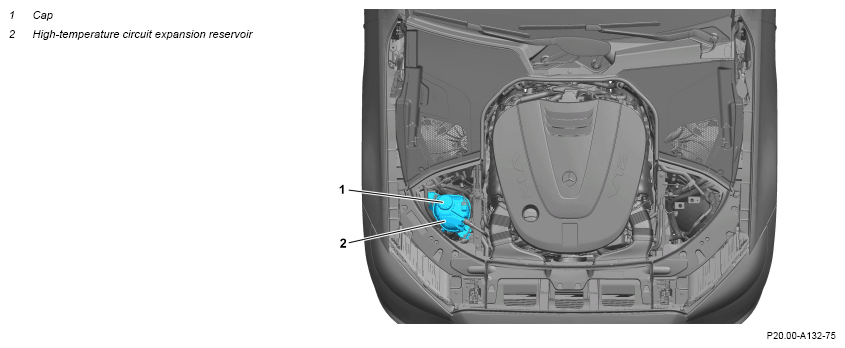

| 1 | Carefully open cap (1) of high-temperature circuit expansion reservoir (2), release overpressure, and remove cap (1). | ||
| 2 | Remove front engine compartment lining and right side front engine compartment lining. | AR61.20-P-1105S | |
| Drain off | |||

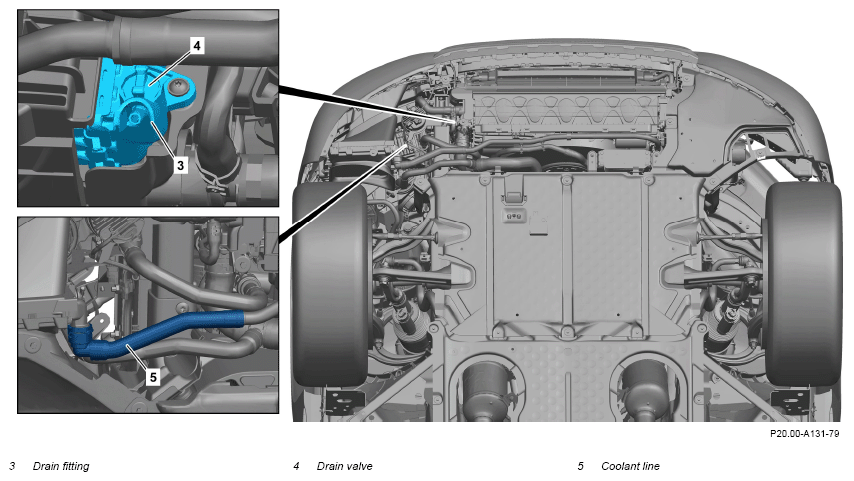

| 3 | Slide suitable drain hose onto drain fitting (3). | ||
| 4 | Open drain valve (4) and collect coolant in a suitable container. | ||
| 5 | Close drain valve (4) and remove drain hose. | ||
| 6 | Disconnect coolant line (5) from additional cooler and collect coolant in a suitable container. | AR20.20-P-7441-01RQ | |
| 7 | Connect coolant line (5) to additional cooler. | AR20.20-P-7441-01RQ | |
| Pour in | |||
| 8 | Connect diagnostic system, switch on ignition, and start fill mode of engine cooling system. | ||
| AD00.00-P-2000-06FR | |||
| 9 | Fill and bleed engine cooling system. | Do not fill engine cooling system without activating fill mode. Proper distribution of the coolant is otherwise not ensured. |
AR20.00-P-1142-04A |
| *BF20.00-P-1001-02GA | |||
| Fig 2 | |||
| Fig 4 | |||
| Fig 1 | |||
| Fig 3 | |||
| 10 | End fill mode of engine cooling system. | ||
| 11 | Start bleeding routine of engine cooling system with diagnostic system. | If the bleeding routine was not completed successfully: ↓ Repeat bleeding routine of engine cooling system. |
|
| 12 | Disconnect diagnostic system and switch off ignition. | ||
| AD00.00-P-2000-06FR | |||
| Check | |||
| 13 | Check coolant level and antifreeze content of engine cooling system, correct if necessary. | *BF20.00-P-1001-02GA | |
| 14 | Check engine cooling system for leak tightness. | AR20.00-P-1011SVZ | |
| Install | |||
| 15 | Install front engine compartment lining and right side front engine compartment lining. | AR61.20-P-1105S |
COOLING SYSTEM
| Number | Designation | Engine 279 in model 223 | |||
|---|---|---|---|---|---|
| BF20.00-P-1001-02GA | Cooling system | Workshop replacement amount | Main circuit | Liter | ≈ 16, 0 |
| Low-temperature circuit | Liter | ≈ 5, 0 | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | ||
| -38°C and below | % | 55/45 | |||
| Fluids specifications | BB00.40-P-0310-01A | ||||
| Fluids specifications | BB00.40-P-0325-06A | ||||
| Fluids specifications | BB00.40-P-0326-06A | ||||
