Remove/Install Charge Air Distributor - AR09.41-P-8683SVZ

Engine 279 in model 223

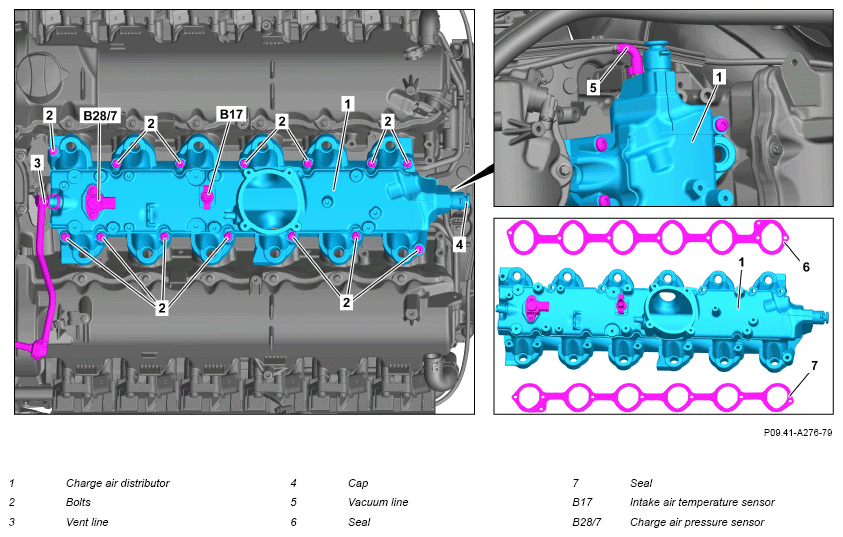

Fig 1: Charge Air Distributor Components Location - Engine 279 In Model 223

Courtesy of MERCEDES-BENZ USA

Shown with engine removed

Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove fuel distributor together with injection valves.		AR07.03-P-1451SVZ
2	Remove front bleed line (3) from charge-air distributor (1).	Plug openings. Record plug	Fig 2
3	Remove click clamp and rear vacuum line (5) from charge-air distributor (1).	Plug openings. : Replace snap clamp. Pliers for click clamps	Fig 3
		Record plug	Fig 2
4	Remove screws (2) in reverse order to tightening procedure.
	Tightening procedure for charge air distributor	: replace screws (2). Tighten screws (2) according to tightening procedure.	GF09.41-P-4129-01SVZ
		Screw/bolt, charge air distributor to cylinder head	*BA09.41-P-1004-01Q
5	Remove the charge-air distributor (1) upwards.	Seal openings with suitable dry cloths.
6	Remove seals (6, 7).	: Replace seals (6, 7).
7	Detach cap (4).	If the charge air distributor (1) is replaced.
8	Remove intake air temperature sensor (B17).	If the charge air distributor (1) is replaced.	AR07.04-P-0035SVZ
9	Remove charge air pressure sensor (B28/7).	If the charge air distributor (1) is replaced.	AR07.04-P-0101SVZ
	Check
10	Check charge-air distributor (1) for damage.	If damage is present: ↓ Replace charge-air distributor (1).
11	Install in the reverse order.

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation			Engine 279
BA09.41-P-1004-01Q	Screw/bolt, charge air distributor to cylinder head	Stage 1	Nm	4
		Stage 2	∠°	180

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Pliers For Click Clamps (171 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
