Remove/Install Holder For Side Window On Rear Door - AR67.39-P-0015SG

Model 223

with code Z07 (B7 armoring on special protection version)

except code Z13 (Left rear power window with special protection)

except code Z14 (Right rear power window with special protection)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  from pinching or crushing hands and feet when working on windows.	Secure the windshields and windows against falling down; use only specified lifting tools; wear safety shoes.	AS67.00-Z-0003-01A
Notice	Notes on avoiding damage to windows installed in special high-security vehicles		AH67.00-P-0003-01FB
	Remove
1	Remove corresponding rear door, door module.		AR72.12-P-0103SGA
2	Secure side window against falling down with collet.	Clamping pliers	Fig 1
3	Mark side window at top on outside on window guide seal with a suitable pen at three points.	The side window must penetrate window guide seal by 5 mm.
4	Remove nuts (2).

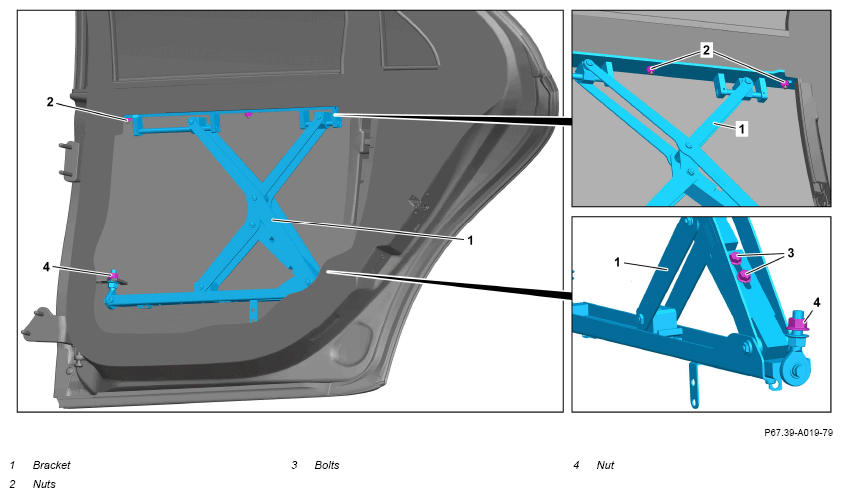

5	Loosen screws (3) and lower bracket (1) as far as possible while securing the side window against falling down with the aid of two helpers.	Due to its very heavy weight, the side window must be held by two helpers. Nuts (4) must still be accessible.
		If the side window moves downward: Lift side window and adjust collet. Clamping pliers	Fig 1
6	Remove nuts (4).
7	Remove bracket (1).
8	Secure side window from bottom against falling down using suitable support.
	Install
9	Remove additional support for side window.
10	Install bracket (1).
11	Position nuts (4) and tighten slightly up to contact surface.
12	Raise bracket (1) up to lower edge of side window and tighten screws (3) slightly up to contact surface.	When raising bracket (1), ensure that threaded pins of side window and bores on bracket (1) are aligned. Aid of helper required.
13	Center bracket (1) on side window in longitudinal direction.	Bracket (1) must not touch the window guides. Otherwise the window guides may be damaged.
14	Position nuts (2) slightly by hand.
15	Tighten nuts (2).	Nut, side window to power window/holder	*BA72.12-P-1007-01U
16	Tighten bolts (3).	Pay attention to the three markings on side window. Screw, lock to holder	*BA72.12-P-1022-01U
17	Tighten nuts (4).	Nut to power window/holder	*BA72.12-P-1006-01U
18	Remove collet.
19	Check markings on side window relative to window guide seal.	If the markings do not match, Adjust height of side window via nuts (4). Nut to power window/holder	*BA72.12-P-1006-01U
20	Spray nuts (4) and threads with wax.	Wax for engine compartment (400 ml spray can)	*BR00.45-Z-1018-05A
21	Install rear door module.		AR72.12-P-0103SGA
