Remove/Install Front Door Window Lifter - AR67.39-P-0013SG

Model 223

with code Z07 (B7 armoring on special protection version)

with code Z11 (Left front power window with special protection)

Model 223

with code Z07 (B7 armoring on special protection version)

with code Z12 (Right front power window with special protection)

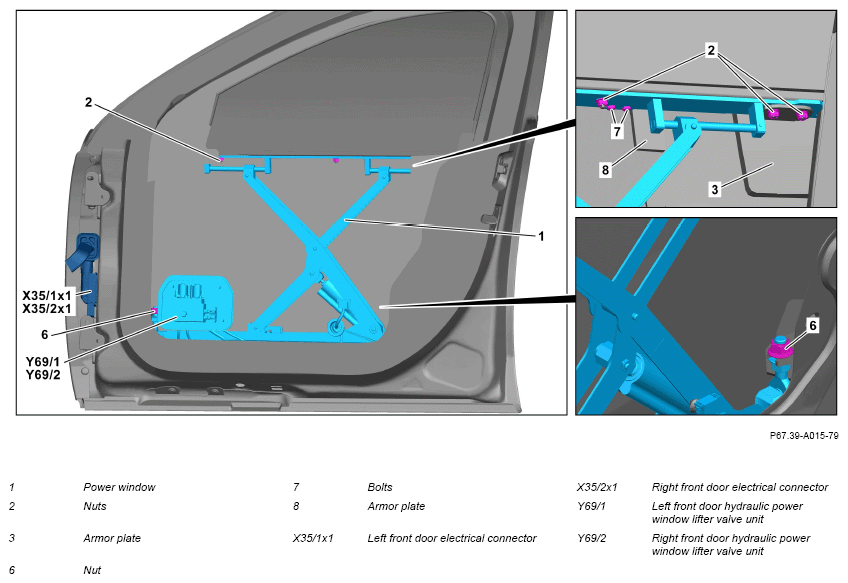

Courtesy of MERCEDES-BENZ USA

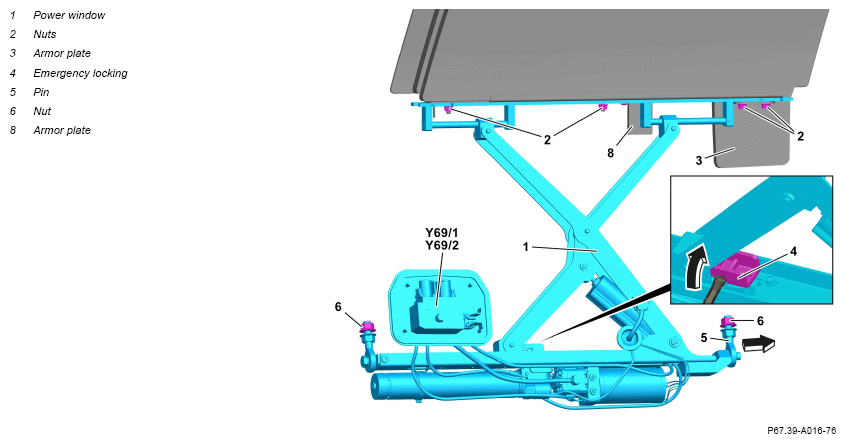

Shown on right front door

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning  from swallowing hydraulic fluid.	Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  from pinching or crushing hands and feet when working on windows.	Secure the windshields and windows against falling down; use only specified lifting tools; wear safety shoes.	AS67.00-Z-0003-01A
Notice	Notes on avoiding damage to windows installed in special high-security vehicles		AH67.00-P-0003-01FB
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Close side window of corresponding front door completely.
2	Remove door module.		AR72.10-P-0900SG
3	Use collet to secure side window against falling down.	Clamping pliers	Fig 1
4	Release emergency locking (4) of side window in direction of arrow with suitable screwdriver and have two helpers secure side window against falling down.	As the side window is extremely heavy, it must be held by two helpers. If side window sinks, ↓ Lift side window and readjust collet. Clamping pliers	Fig 1
5	Remove nuts (2).
6	Remove armor plate (3).
7	Actuate emergency actuations on valve unit (Y69/1, Y69/2) and lower window lifter (1).	Nuts (6) must still be accessible.
8	Remove nuts (6) and take out bolt (5).
9	Lift window lifter (1) at rear and remove.
10	Secure side window from below against falling down using suitable support.
11	Unscrew screws (7) and remove armor plate (8) from window lifter (1).	If window lifter (1) is replaced.
	Install
12	Position armor plate (8) on window lifter (1) and screw in screws (7).	When power window (1) has been replaced. Screw, guard plate to power window/holder	*BA72.10-P-1020-01BA
13	Remove additional support for side window.
14	Insert window lifter (1) and position.
15	Install bolt (5), position nuts (6), and tighten slightly up to contact surface.
16	Actuate emergency actuations on valve unit (Y69/1, Y69/2) and raise window lifter by hand until emergency locking (4) locks.	Two helpers are required. When lifting power window (1), ensure that the threaded pins of the side window and the holes in the power window (1) coincide.
17	Carefully lift window lifter (1) until window lifter (1) is in contact with lower edge of side window.	When lifting power window (1), ensure that the threaded pins of the side window and the holes in the power window (1) coincide.
18	Center window lifter (1) on side window in longitudinal direction.	Center power window (1) in relation to side window. Otherwise the window guides may be damaged.
19	Position armor plate (3) in installation position and position nuts (2).
20	Tighten nuts (2).	Nut, side window to power window/holder	*BA72.10-P-1019-01BA
21	Remove collet and have two helpers secure side window against falling down while doing so.	As the side window is extremely heavy, it must be held by two helpers.
22	Connect front door control unit and door wiring harness.
23	Bleed hydraulic system of window lifter (1).		AR67.39-P-0013-02SG
24	Adjust height of front side window.		AR67.30-P-0100-04SG
25	Lower window lifter (1) via emergency actuation on valve unit (Y69/1, Y69/2).
26	Tighten nuts (6).	Nut, power window/holder to front door	*BA72.10-P-1018-01BA
27	Spray nuts (6) and threads with wax.	Wax for engine compartment (400 ml spray can)	*BR00.45-Z-1018-05A
	Check
28	Carefully lift and lower window lifter (1) at front door.	Ensure correct and smooth movement of window lifter (1), otherwise recenter window lifter (1).
	Install
29	Remove door wiring harness with front door control unit.
30	Install front door module.		AR72.10-P-0900SG

Fig 1: Identifying Clamping Pliers (220 589 04 31 00)

Courtesy of MERCEDES-BENZ USA
