Adjust Height Of Front Side Window - AR67.30-P-0100-04SG
Model 223
with code Z07 (B7 armoring on special protection version)
with code Z11 (Left front power window with special protection)
Model 223
with code Z07 (B7 armoring on special protection version)
with code Z12 (Right front power window with special protection)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury from pinching or crushing hands and feet when working on windows. | Secure the windshields and windows against falling down; use only specified lifting tools; wear safety shoes. | AS67.00-Z-0003-01A | |
| Notice | Notes on avoiding damage to windows installed in special high-security vehicles | AH67.00-P-0003-01FB |

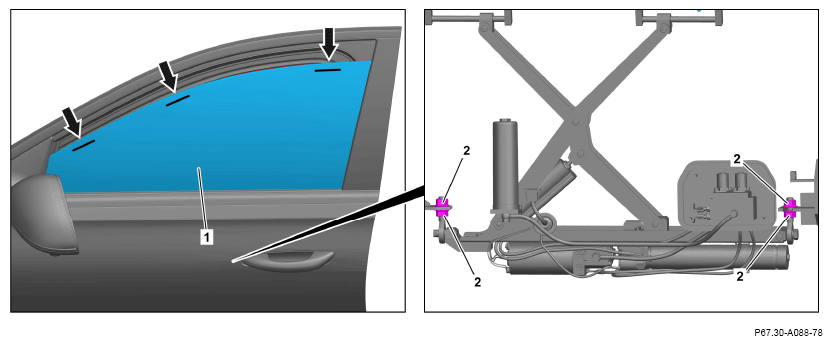

Shown with code Z11 (Front left window lifter for special protection)
Check
- Lower front side window (1) a little.
- Mark front side window (1) at three points 5 mm from top in the upper area using a suitable pen.
- Fully close front side window (1) and check markings (arrows).
If the markings (arrows) are flush with the window guide seal:
↓
Remove markings (arrows) and complete work.
If the markings (arrows) are not flush with the window guide seal:
↓
Adjust height of front side window (1) accordingly.
Adjust
- Adjust height of front side window (1) with nuts (2) of window lifter and repeat operation step 3.
