Bleed Window Lifter Hydraulic System - AR67.39-P-0013-02SG

Model 223

with code Z07 (B7 armoring on special protection version)

with code Z11 (Left front power window with special protection)

Model 223

with code Z07 (B7 armoring on special protection version)

with code Z12 (Right front power window with special protection)

Model 223

with code Z07 (B7 armoring on special protection version) with code Z13 (Left rear power window with special protection)

Model 223

with code Z07 (B7 armoring on special protection version) with code Z14 (Right rear power window with special protection)

Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid.	Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
Risk of injury from pinching or crushing hands and feet when working on windows.	Secure the windshields and windows against falling down; use only specified lifting tools; wear safety shoes.	AS67.00-Z-0003-01A
Hydraulic fluids (Specification 345.0)		BB00.40-P-0345-00A

Courtesy of MERCEDES-BENZ USA

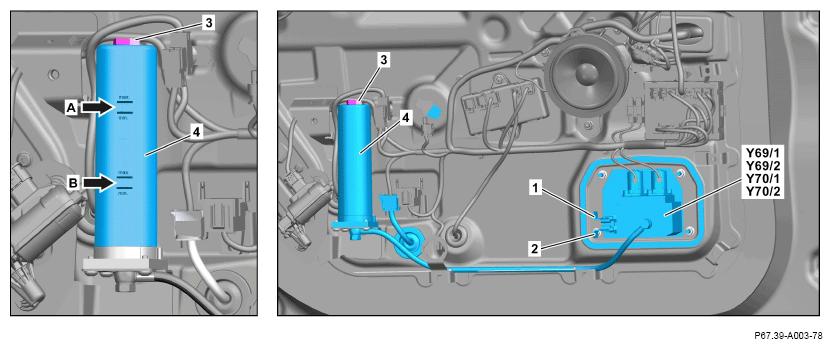

Remove bleed screw (3) and fill up expansion reservoir (4) with oil to halfway.
Actuate emergency actuation (raise) (1) on valve unit (Y69/1, Y69/2, Y70/1, Y70/2) and close side window completely.
Actuate emergency actuation (lower) (2) on valve unit (Y69/1, Y69/2, Y70/1, Y70/2) and keep pressed until side window has moved into catch of window lifter.
Actuate emergency actuation (raise) (1) on valve unit (Y69/1, Y69/2, Y70/1, Y70/2) and keep pressed, at the same time briefly actuate emergency actuation (lower) (2) on valve unit (Y69/1, Y69/2, Y70/1, Y70/2) several times.
LU Collect escaping oil in a suitable vessel.

By briefly pressing emergency actuation (lower) (2) several times on valve unit (Y69/1, Y69/2, Y70/1, Y70/2), the oil is delivered from the pressure reservoir into the expansion reservoir (4) and the hydraulic system is bled.

The venting process must be repeated until oil foam can no longer be seen in expansion reservoir (4).
Actuate emergency actuation (lower) (2) on valve unit (Y69/1, Y69/2, Y70/1, Y70/2) and open side window completely.
The oil level must be in the lower area (arrow B) when the side window is closed.

If oil level is not in lower area (arrow B):

Correct oil level.

↓
Disconnect electrical connector of window lifter and actuate emergency actuation (raise) (1) and emergency actuation (lower) (2) simultaneously for 3 s.
The oil level must be in the upper area (arrow A) when the side window is closed.

If oil level is not in upper area (arrow A):

↓

Correct oil level.
