Remove/Install Center Console - AR68.20-P-2000S

Model 223

Courtesy of MERCEDES-BENZ USA

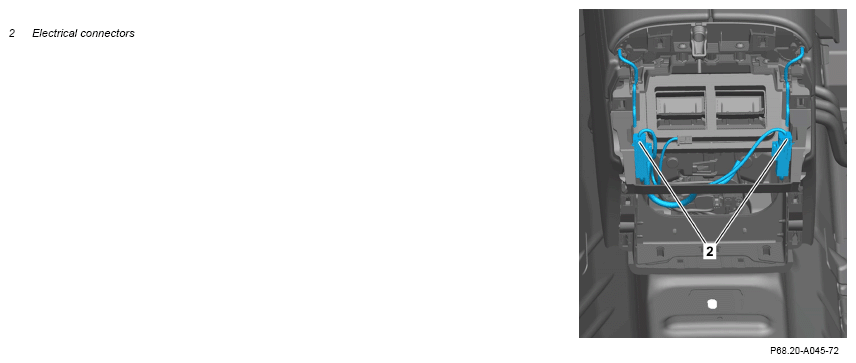

Shown with code 906 (front armrest heating)

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2.1	Remove rear center console.	Model 223 with code 224 (Individual rear seats)
			AR68.20-P-2020S
2.2	Remove air conditioning control panel in rear passenger compartment.	Model 223 with code 582 (Air conditioning, rear) except code 224 (Individual rear seats)
			AR83.30-P-6640S
3	Move driver and front passenger seat as far back as possible.

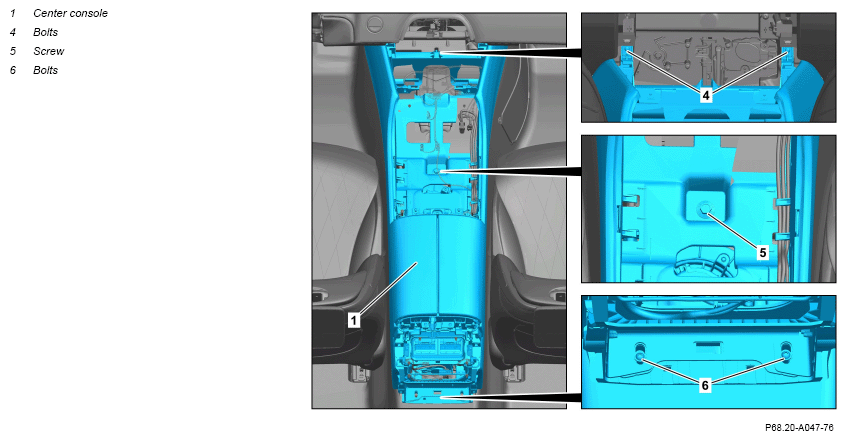

4	Remove stowage compartment in front center console (1).		AR68.20-P-0901SA
5	Release and disconnect electrical connectors (2) of heated armrest.	Model 223 with code 906 (Front armrest heater)
6	Unscrew screw (5).
7	Remove screws (6).
8	Remove bolts (4).
9	Release and disconnect electrical connectors and expose electrical wiring harness on center console (1).	The number of electrical connectors can vary depending on the equipment variant.
		Dismantling tool	Fig 1
10	Lift center console (1) at the rear, pull it backwards slightly and remove it from the vehicle.	Aid of helper required.
11	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
