Remove/Install Climate Control Operating Unit In Rear Passenger Compartment - AR83.30-P-6640S
Model 223
with code 582 (Air conditioning, rear)
except code 224 (Individual rear seats)

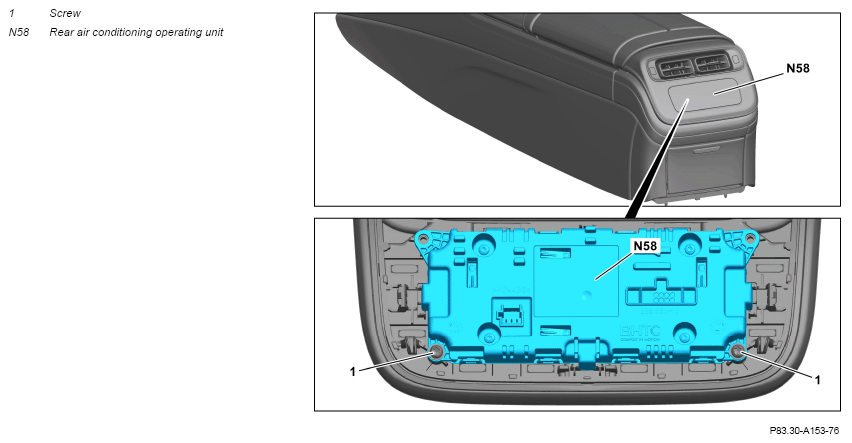

Fig 1: Climate Control Operating Unit In Rear Passenger Compartment Components Location - Model 223 With Code 582 Except Code 224
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove center rear air vent. | AR83.10-P-4803S | |
| 2 | Remove bolts (1). | ||
| 3 | Remove rear climate control operating unit (N58). | ||
| 4 | Install in the reverse order. |
