Remove/Install Stowage Compartment In Front Center Console - AR68.20-P-0901SA
Model 223
Shown on vehicle with code 72B (USB package) and with code 899 (Front wireless telephone charging and antenna)
Shown on model 223 with code Z07 (B7 armoring for special protection version) and with code Z21 (Fire-extinguishing system)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/Install | |||
| 1 | Remove front stowage compartment in front center console. | AR68.20-P-0900S | |

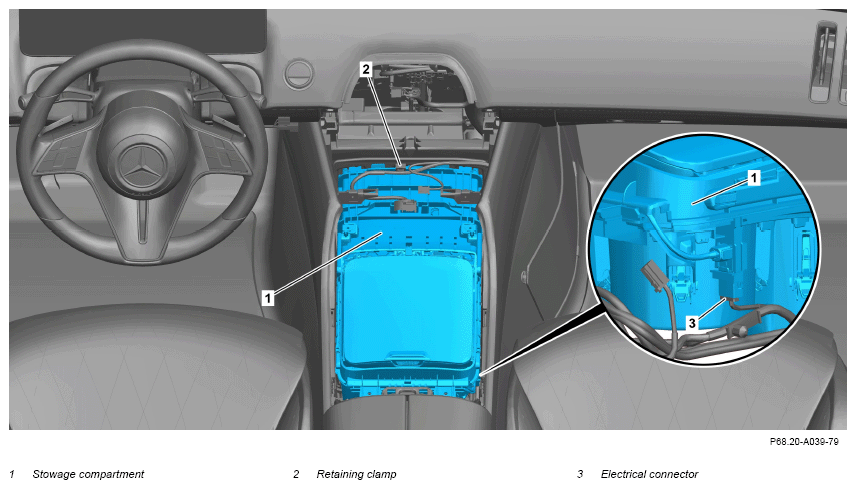

| 2 | Remove retaining clip (2) from stowage compartment (1). | ||
| 3 | Lift stowage compartment (1) at rear, guide slightly out of center console and then tilt upwards at rear. | ||
| 4 | Release and disconnect electrical connector (3). | ||

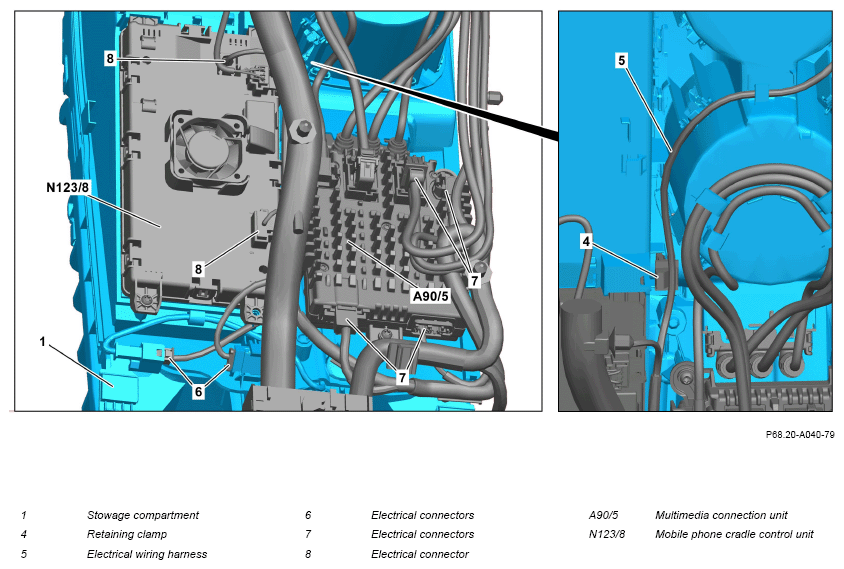

| 5 | Remove retaining clip (4) and expose electrical wiring harness (5) at stowage compartment (1). | ||
| 6 | Release and disconnect electrical connectors (6). | ||
| 7 | Release and disconnect electrical connectors (7) at multimedia connection unit (A90/5). | Model 223 with code 72B (USB package) |
|
| 8 | Release and disconnect electrical connectors (8) at front mobile phone cradle control unit (N123/8). | Model 223 with code 897 (Front wireless telephone charging) Model 223 with code 899 (Front wireless telephone charging and antenna) |
|

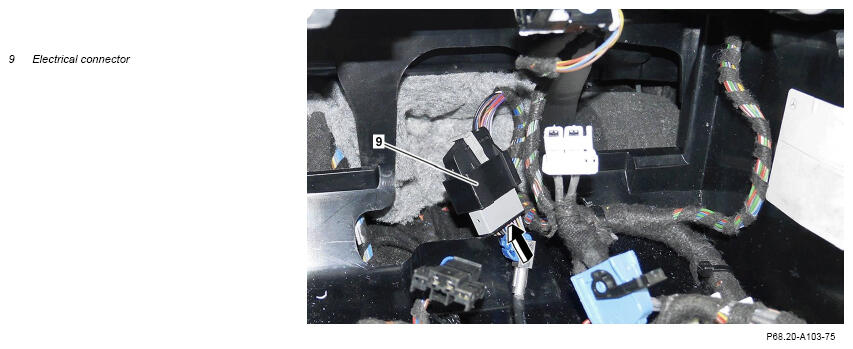

| 9 | Guide out electrical connector (9) of adapter wiring harness of switch panel (arrow), release and disconnect. | Model 223 with code Z07 (B7 armoring on special protection version) with code Z21 (Fire extinguishing system) Model 223 with code Z07 (B7 armoring on special protection version) with code Z22 (Panic alarm system) Model 223 with code Z07 (B7 armoring on special protection version) with code Z25 (Emergency fresh-air system) Otherwise, adapter wiring harness will be damaged and would need to be replaced. |
|
| 10 | Remove stowage compartment (1). | ||
| 11 | Install in the reverse order. |
