Remove/Install Front Headliner - Ar68.30-D-7607TS
Model 907

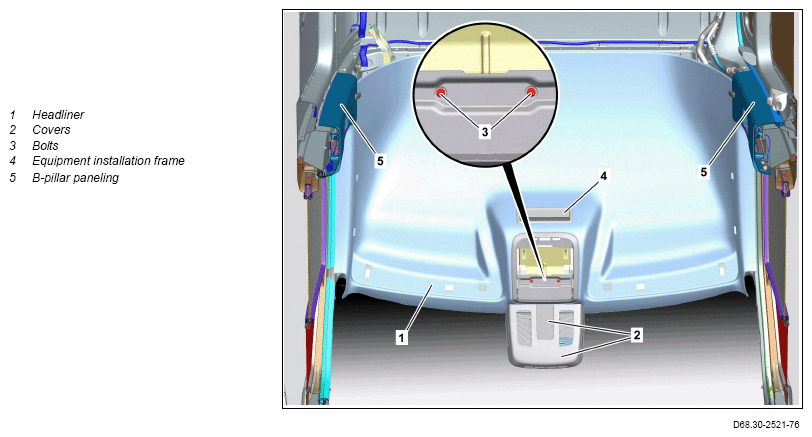

Shown on model 907 with code FF8 (1-DIN slot at front under headliner), with code FF5 (Stowage box/tray above windshield) and except code F61 (Inside rearview mirror)
Shown on model 907 with code FF8 (1-DIN slot at front under headliner) and with code FF5 (Stowage box/tray above windshield)

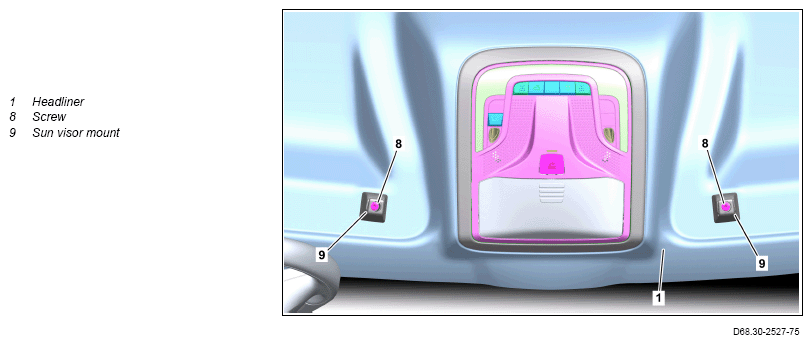

Shown on model 907 except code FX0 (Stowage compartment above windshield, driver's side)
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Move driver's seat to rearmost position. | ||
| 2 | Remove covers (2). | Fig 1 | |
| 3 | Remove front overhead control panel. | AR82.20-D-1100TS | |
| 4 | Remove screw/bolts (3). | Model 907 with code FF8 (Single-size slot at front under roof liner) |
|
| 5 | Remove device installation frame (4). | Model 907 with code FF8 (Single-size slot at front under roof liner) |
|
| 6 | Remove both A-pillar trims. | AR68.30-D-4051TS | |
| 7.1 | Remove stowage box/tray above windshield on driver's and/or front passenger side. | Model 907 with code FF5 (Shelf above windscreen) |
|
| AR68.30-D-5577TS | |||
| 7.2 | Remove sun visor on driver's and/or front passenger side. | Model 907 except code FF5 (Shelf above windscreen) |
|
| AR68.60-D-5480TS | |||
| 8 | Remove screw (8) on driver's and/or front passenger side and remove sun visor bracket (9) on driver's side and/or front passenger side. | Model 907 except code FF5 (Shelf above windscreen) except code FX0 (Stowage comp. above windscreen, driver side) |
|
| 9 | Remove upper trim at partition. | Model 907.6 with code V07 (Rear wall panelling) |
AR68.30-D-1407TS |

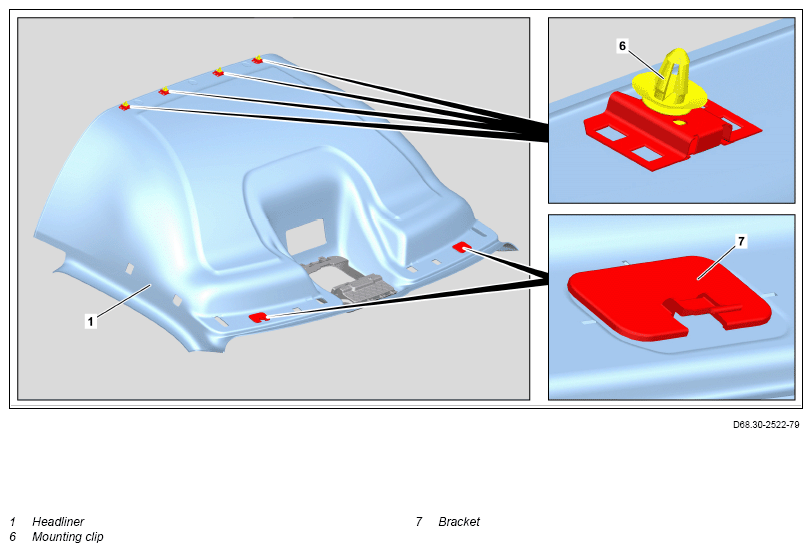

| 10 | Unclip roof lining (1) with a suitable tool in rear area at retaining clips (6). | ||
| 11.1 | Release window airbags on driver's side and front passenger side from roof lining (1). | Model 907 with code SH9 (Windowbag for driver and co-driver) |
|
| 11.2 | Release window airbag on driver's side from roof lining (1). | Model 907 with code SJ3 (Omission of front passenger window airbag) |
|
| 12 | Press roof lining (1) toward rear and upwards and move with brackets (7) in front area out of roof. | Carefully insert roof lining (1) in front area into roof. Risk of breakage of brackets (7). |
|
| 13 | Lift roof lining (1) over B-pillar trims and swivel downwards in rear area. | ||
| 14 | Fully open front passenger door. | ||
| 15 | Remove roof lining (1) from vehicle. | ||
| 16 | Check retaining clips (6) for damage. | If a retaining clip (6) is damaged, ↓ Replace relevant retaining clip (6). |
|
| Risk of injury caused by slipping when clamping blade in the multicutter and by splinters when cutting out bonded windows | Wear protective gloves and safety glasses. | AS65.00-Z-0003-01A | |
| 17 | Incorporate cutouts into new roof lining (1). | When replacing roof paneling (1). Depending on the equipment variant or accessories, the new roof lining (1) must be provided with additional cutouts. |
AR68.30-D-7607-01TS |
| 18 | Install in the reverse order. | ||
| Check | |||
| 19 | Perform function test of all component parts installed in roof lining (1). |
