Remove/Install Front Overhead Control Panel - Ar82.20-D-1100TS

Model 907

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)

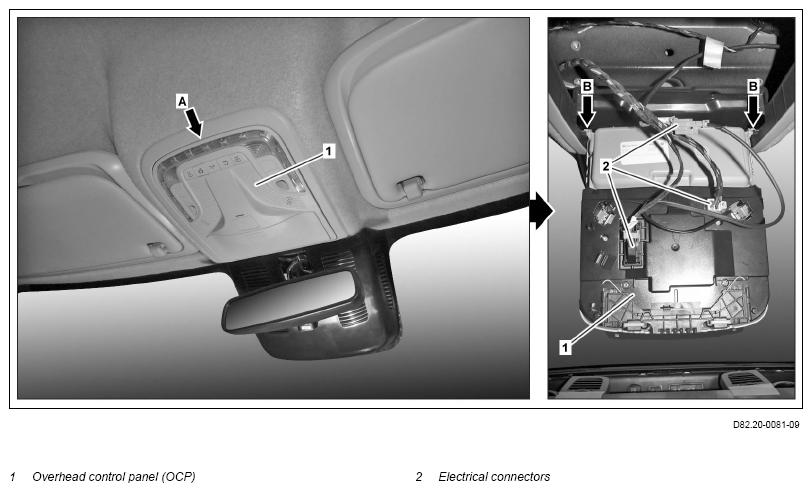

2	Overhead control panel (1) in rear area (arrow A) and swing downwards	WIS Service Media  wsm://04  201710 03 Operation steps 2 to 4 are shown here.
3	Separate electrical connectors (2)	The number of electrical connections (2) may vary depending on vehicle equipment.
4	Unhook overhead control panel (1) from brackets (arrows B) and remove
5	Install in the reverse order
	Check
6	Perform function test of overhead control panel (1)
