Remove/Install A-Pillar Trim - Ar68.30-D-4051TS

Model 907

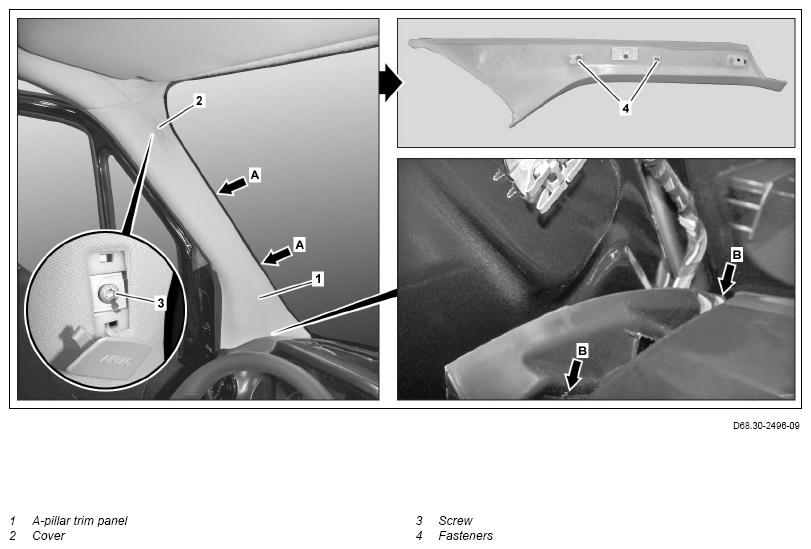

Shown on model 910 on the driver's side with code SH9 (window airbag for driver and front passenger)

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
2	Detach sealing frame along A-pillar trim (1)
3	Unclip cover (2) from A-pillar trim (1)	Model 907 with code SH9 (Windowbag for driver and co-driver)
		Clip remover	Fig 1
4	Unscrew screw/bolt (3)	Model 907 with code SH9 (Windowbag for driver and co-driver)
5.1	Detach A-pillar trim (1) in top area from A-pilla and unclip in the center area (arrows A) from A-pillar	Model 907 with code SH9 (Windowbag for driver and co-driver) : Ensure correct bedding in of the fasteners (4) in the A-pillar.
		Clip remover	Fig 1
5.2	Unclip A-pillar trim from the A-pillar starting at the top	Model 907 except code SH9 (Windowbag for driver and co-driver)
		Clip remover	Fig 1
6	Remove A-pillar trim (1)	: Insert A-pillar trim (1) first into guides (arrows B) on the instrument panel.
7	Install in the reverse order

Fig 1: Clip Remover (452 589 01 63 00)
