Fill Automatic Transmission With Transmission Oil - AR27.00-P-0270EWN

Transmission 725.0 (except 725.007/017/037/047), 725.1

G15037530Courtesy of MERCEDES-BENZ USA
G15037531Courtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
CAUTION Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.		 AS00.40-Z-0001-01A
  Notes on automatic transmission   AH27.19-P-0001-01NKB
  Fill with transmission oil
1.1 Remove bottom engine compartment paneling. Transmission 725.0 (except 725.007/017/037/047) in model 463 as of model year 2019 Transmission 725.0 (except 725.007/017/037/047), 725.1 in model 166, 167, 172.4, 205, 206, 207, 212, 213, 217, 218, 222, 223, 231, 238, 253, 257, 290, 292
    Model 206 with transmission 725.1 AR61.20-P-1105WT
    Model 167 with transmission 725.0 (except 725.007/017/037/047), 725.1 AR61.20-P-1105ME
    Model 463 with transmission 725.0 (except 725.007/017/037/047) as of model year 2019 AR61.20-P-1105XG
    Model 257 with transmission 725.0 (except 725.007/017/037/047), 725.1 AR61.20-P-1105FR
    Model 290 with transmission 725.0 (except 725.007/017/037/047), 725.1 AR61.20-P-1105FRX
    Model 172.4 with engine 651 with transmission 725.0 (except 725.007/017/037/047) AR94.30-P-5300W
    Model 207, 212, 218 with engine 642 with
transmission 725.0 (except 725.007/017/037/047)
Model 207, 212, 218 with engine 651 with
transmission 725.0 (except 725.007/017/037/047)		 AR94.30-P-5300EW
    Model 172.4 with engine 274 with transmission 725.0 (except 725.007/017/037/047) Model 172.4 with engine 276 with transmission 725.0 (except 725.007/017/037/047) AR61.20-P-1105W
    Model 205, 253 with transmission 725.0 (except 725.007/017/037/047) AR61.20-P-1105LW
    Model 231 with transmission 725.0 (except 725.007/017/037/047) AR61.20-P-1105RK
    Model 213, 238 with transmission 725.0 (except 725.007/017/037/047), 725.1 AR61.20-P-1105LWE
    Model 217, 222 with transmission 725.0 (except 725.007/017/037/047) AR61.20-P-1105LF
    Model 218 with engine 276 with transmission 725.0 (except 725.007/017/037/047) Model 218 with engine 278 with transmission 725.0 (except 725.007/017/037/047) AR61.20-P-1105EW
    Model 166, 292 with transmission 725.0 (except 725.007/017/037/047) AR61.30-P-1001GQ
    Model 223 with transmission 725.0 (except 725.007/017/037/047), 725.1 AR61.20-P-1105S
1.2 Remove front diagonal struts. Transmission 725.0 (except 725.007/017/037/047) in model 232 AR61.10-P-5141SLY
2 Determine oil pan version. Transmission 725.0 (except 725.007/017/037/047) in model 166, 167, 172, 205, 207, 212, 213, 217, 218, 222, 223, 231, 238, 253, 257, 292 Transmission 725.0 (except 725.007/017/037/047) in model 463 as of model year 2019
  Notes on oil pan versions Transmission 725.0 (except 725.007/017/037/047) in model 166, 167, 172, 205, 207, 212, 213, 217, 218, 222, 223, 231, 238, 253, 257, 292 Transmission 725.0 (except 725.007/017/037/047) in model 463 as of model year 2019 If old version is installed
↓
Replace oil pan.		 AH27.10-P-0002-01EWN
    Transmission 725.0 (except 725.007/017/037/047) in model 463 as of model year 2019 AR27.10-P-7031XG
    Transmission 725.0 (except 725.007/017/037/047) in model 257 AR27.10-P-7031MSA
    Transmission 725.0 (except 725.007/017/037/047) in model 166, 292 AR27.10-P-7031EWM
    Transmission 725.0 (except 725.007/017/037/047) in model 172, 207, 231 AR27.10-P-7030EWM
    Transmission 725.0 (except 725.007/017/037/047) in model 212, 218 AR27.10-P-7030AVG
    Transmission 725.0 (except 725.007/017/037/047) in model 213, 238 AR27.10-P-7030OLC
    Transmission 725.0 (except 725.007/017/037/047) in model 205, 253 AR27.10-P-7030LW
    Transmission 725.0 (except 725.007/017/037/047) in model 217, 222 AR27.10-P-7030LF
    Transmission 725.0 (except 725.007/017/037/047) in model 167 AR27.10-P-7031MSC
    Transmission 725.0 (except 725.007/017/037/047) in model 223
IMPORTANT When ordering the new oil pan, the new version is supplied automatically.		 AR27.10-P-7031S
3 Position suitable oil receptacle under transmission.

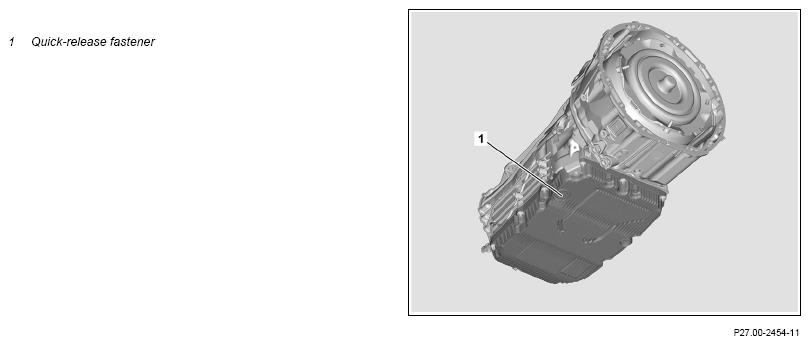

4 Unscrew quick-release fastener (1). NOTES
The torque specified on the oil pan is the max. torque for the quick-release coupling (1).
The oil pan is damaged if the tightening torque is too great.
SPECIAL TOOL Socket wrench		 Fig 1

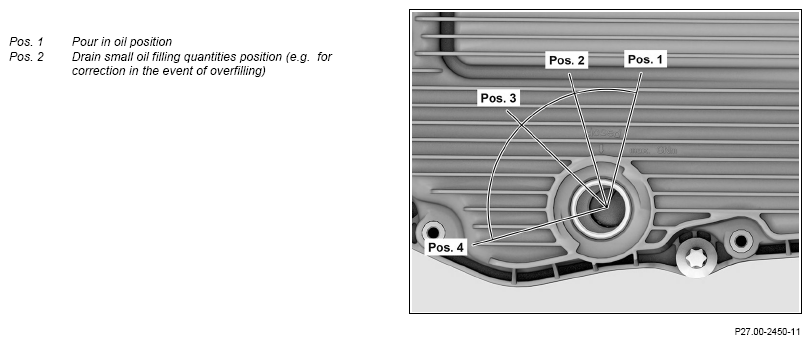

5 Move overflow pipe to "pour in oil" position (Pos. 1). SPECIAL TOOL Socket wrench Fig 3
6 Attach adapter and connect oil dispenser.
REFER TO SPECIAL TOOLS 000 588 06 82 00 Oil dispenser NOTES
Adjust air pressure at oil dispenser to 2 bar at the highest before filling transmission.
Otherwise the oil pan may be damaged.
IMPORTANT The oil dispenser remains connected throughout the entire filling and test procedure.		 WS18.00-P-0026B
    SPECIAL TOOL Adapter Fig 2
7 Pump transmission oil into transmission.
REFER TO CAPACITIES & SPECIFICATIONS Automatic transmission fluids (ATF) (specification 236.17) IMPORTANT If transmission oil was drained from the oil pan, prefill the transmission with approx. 4.5 L. and if transmission oil was drained from the oil pan and torque converter, or if the transmission is completely empty, prefill transmission with 7.5 L.. BB00.40-P-0236-17A
8 Start test routine, check transmission oil level and correct if necessary.   AR27.00-P-0270-02EWN
REFER TO SELF-DIAGNOSTIC SYSTEMSS   Transmission 725.0 (except 725.007/017/037/047) in model 223, 232, 257, 290
Transmission 725.1 in model 206, 223, 232, 257		 AD00.00-P-2000-06FR
REFER TO SELF-DIAGNOSTIC SYSTEMSS   Transmission 725.0 (except 725.007/017/037/047) in model 205, 213, 217, 222, 253
Transmission 725.0 (except 725.007/017/037/047) in model 463 as of model year 2019 Transmission 725.1 in model 213		 AD00.00-P-2000-04B
REFER TO SELF-DIAGNOSTIC SYSTEMSS   Transmission 725.0 (except 725.007/017/037/047) in model 166, 172, 207, 212, 218, 231, 292 AD00.00-P-2000-04A
REFER TO SELF-DIAGNOSTIC SYSTEMSS   Transmission 725.0 (except 725.007/017/037/047), 725.1 in model 238 AD00.00-P-2000-06LWO
REFER TO SELF-DIAGNOSTIC SYSTEMSS   Transmission 725.0 (except 725.007/017/037/047) in model 167 AD00.00-P-2000-06ME
REFER TO SPECIAL TOOLS 000 588 09 19 00 Oil level sensor   WS27.00-P-0188B
REFER TO SPECIAL TOOLS 000 588 06 82 00 Oil dispenser   WS18.00-P-0026B
REFER TO CAPACITIES & SPECIFICATIONS Automatic transmission fluids (ATF) (specification 236.17) IMPORTANT Select ultrasonic measurement method in XENTRY.
IMPORTANT On vehicles with thermostatically-controlled oil cooler.
After opening the oil cooling circuit (e.g. new oil cooler) heat the transmission to more than 90°C, to open the thermostat on the oil cooler.		 BB00.40-P-0236-17A
    Assembly cleaner *BR00.45-Z-1028-04A
    MB Plastilube brake paste (brownish) *BR00.45-Z-1084-06A
    SPECIAL TOOL Socket wrench Fig 1
    SPECIAL TOOL Socket wrench Fig 3
    SPECIAL TOOL Adapter Fig 2
9 Disconnect adapter and screw in oil dispenser and quick-release fastener (1).
REFER TO SPECIAL TOOLS 000 588 06 82 00 Oil dispenser NOTES
Engine running when closing off oil dispenser.
Otherwise, more oil will run out.
IMPORTANT Engine must run at idle, else too much oil will escape.
IMPORTANT A small quantity of oil runs out of the overflow pipe.		 WS18.00-P-0026B
    SPECIAL TOOL Adapter Fig 2
    SPECIAL TOOL Socket wrench Fig 1
10 Perform engine test run and check transmission for leak tightness and proper operation.
11.1 Install lower engine compartment lining. Transmission 725.0 (except 725.007/017/037/047) in model 463 as of model year 2019 Transmission 725.0 (except 725.007/017/037/047), 725.1 in model 166, 167, 172.4, 205, 206, 207, 212, 213, 217, 218, 222, 223, 231, 238, 253, 257, 290, 292 Model 206 with transmission 725.1 AR61.20-P-1105WT
    Model 463 with transmission 725.0 (except 725.007/017/037/047) as of model year 2019 AR61.20-P-1105XG
    Model 257 with transmission 725.0 (except 725.007/017/037/047), 725.1 AR61.20-P-1105FR
    Model 167 with transmission 725.0 (except 725.007/017/037/047), 725.1 AR61.20-P-1105ME
    Model 290 with transmission 725.0 (except 725.007/017/037/047), 725.1 AR61.20-P-1105FRX
    Model 172.4 with engine 651 with transmission 725.0 (except 725.007/017/037/047) AR94.30-P-5300W
    Model 207, 212, 218 with engine 642 with
transmission 725.0 (except 725.007/017/037/047)
Model 207, 212, 218 with engine 651 with
transmission 725.0 (except 725.007/017/037/047)		 AR94.30-P-5300EW
    Model 172.4 with engine 274 with transmission 725.0 (except 725.007/017/037/047) Model 172.4 with engine 276 with transmission 725.0 (except 725.007/017/037/047) AR61.20-P-1105W
    Model 205, 253 with transmission 725.0 (except 725.007/017/037/047) AR61.20-P-1105LW
    Model 231 with transmission 725.0 (except 725.007/017/037/047) AR61.20-P-1105RK
    Model 213, 238 with transmission 725.0 (except 725.007/017/037/047), 725.1 AR61.20-P-1105LWE
    Model 217, 222 with transmission 725.0 (except 725.007/017/037/047) AR61.20-P-1105LF
    Model 218 with engine 276 with transmission 725.0 (except 725.007/017/037/047) Model 218 with engine 278 with transmission 725.0 (except 725.007/017/037/047) AR61.20-P-1105EW
    Model 166, 292 with transmission 725.0 (except 725.007/017/037/047) AR61.30-P-1001GQ
    Model 223 with transmission 725.0 (except 725.007/017/037/047), 725.1 AR61.20-P-1105S
11.2 Install front diagonal struts. Transmission 725.0 (except 725.007/017/037/047), 725.1 in model 232 AR61.10-P-5141SLY
Fig 1: Identifying Socket Wrench (724 589 01 09 00)
G13657102Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Adapter (725 589 00 90 00)
G12935427Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Socket Wrench (725 589 00 09 00)
G11971897Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
BR00.45-Z-1084-06A MB Plastilube brake paste (brownish) A 002 989 37 51
