Replace Radial Shaft Sealing Ring At Outer Right Front Axle Differential - AR33.30-P-0540MSA

Model 257 with engine 256 with transmission 725.0

with code M005 (Vehicles with 4MATIC/all-wheel drive)

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Remove center and rear lower engine compartment lining.		AR61.20-P-1105FR
2	Unscrew drain screw from front axle differential (1) and drain hypoid gear oil.	Model 257 with engine 256 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
		Model 257 with engine 256 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) With VAG 160	AR33.25-P-0300-01LWX
3	Remove right front axle shaft.		AR33.30-P-0620MSA

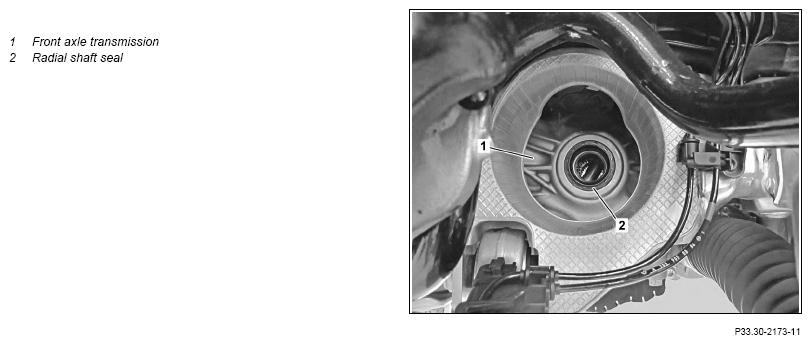

4	Pull radial shaft sealing ring (2) out of front axle differential (1) using internal extractor, pull-off device and impact extractor.	Connect the internal extractor and impact extractor to the threaded rod of the extraction tool.
		Internal extractor	Fig 1
		Extraction tool	Fig 6
		Impact extractor	Fig 5
	Check
5	Check seat of radial shaft sealing ring (2) for damage.	If damage is found, ↓ replace front axle differential (1).	AR33.30-P-0525MSA
	Install
6	Install radial shaft sealing ring (2) using drift.	Replace radial shaft sealing ring (2).
		With VAG 160 Drift set	Fig 3
		With VAG 175 Drift	Fig 4
7	Moisten sealing lip of radial shaft sealing ring (2) with transmission oil.
	Universal hypoid gear oils (specification 235.7)		BB00.40-P-0235-07A
8	Tighten drain screw.	Model 257 with engine 256 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) With VAG 175 Replace drain screw.
		Front axle transmission drain screw	*BA33.30-P-1008-03G
9	Add hypoid gear oil to front axle differential (1) through opening of front axle shaft.	Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
		Hypoid gear oil	*BF33.30-P-1001-03F
		Hand pump	Fig 2
10	Install right front axle shaft.		AR33.30-P-0620MSA
11	Check front axle differential (1) for leak tightness and proper operation.
12	Install center and rear lower engine compartment lining.		AR61.20-P-1105FR
