Drain/Pour In Front Axle Gear Oil - AR33.25-P-0300-01LWX
Model 205, 213, 238, 253, 257, 290 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) With VAG 160
Model 253 with transmission 724.2 With VAG 160
Model 257 with transmission 725.1 with code M005 (Vehicles with 4MATIC/all-wheel drive) With VAG 160
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A |
FRONT AXLE DIFFERENTIAL
| Number | Designation | Model 205 | Model 213 | |
|---|---|---|---|---|
| BA33.30-P-1008-03G | Front axle transmission drain screw | Nm | 20 | 20 |
FRONT AXLE DIFFERENTIAL
| Number | Designation | Model 238 | Model 253 | |
|---|---|---|---|---|
| BA33.30-P-1008-03G | Front axle transmission drain screw | Nm | 20 | 20 |
FRONT AXLE DIFFERENTIAL
| Number | Designation | Model 257 | Model 290 | |
|---|---|---|---|---|
| BA33.30-P-1008-03G | Front axle transmission drain screw | Nm | 20 | 20 |
FRONT AXLE DIFFERENTIAL
| Number | Designation | Model 205 | Model 213 | ||
|---|---|---|---|---|---|
| BA33.30-P-1014-03G | Front axle transmission filling screw | M24 | Nm | 25 | 25 |
FRONT AXLE DIFFERENTIAL
| Number | Designation | Model 238 | Model 253 | ||
|---|---|---|---|---|---|
| BA33.30-P-1014-03G | Front axle transmission filling screw | M24 | Nm | 25 | 25 |
FRONT AXLE DIFFERENTIAL
| Number | Designation | Model 257 | Model 290 | ||
|---|---|---|---|---|---|
| BA33.30-P-1014-03G | Front axle transmission filling screw | M24 | Nm | 25 | 25 |
FRONT AXLE GEAR
| Number | Designation | Model 205 | Model 213 | ||
|---|---|---|---|---|---|
| BF33.30-P-1001-03F | Hypoid gear oil | Filling capacity | Liter | 0, 55 | 0, 55 |
| Universal hypoid gear oil | BB00.40-P-0235-07A | BB00.40-P-0235-07A | |||
| Overview of axle gear oils | BB00.40-P-0231-01A | BB00.40-P-0231-01A | |||
| Axle gear oils | BB00.40-P-0239-72A | BB00.40-P-0239-72A | |||
FRONT AXLE GEAR
| Number | Designation | Model 238 | Model 253 | ||
|---|---|---|---|---|---|
| BF33.30-P-1001-03F | Hypoid gear oil | Filling capacity | Liter | 0, 55 | 0, 55 |
| Universal hypoid gear oil | BB00.40-P-0235-07A | BB00.40-P-0235-07A | |||
| Overview of axle gear oils | BB00.40-P-0231-01A | BB00.40-P-0231-01A | |||
| Axle gear oils | BB00.40-P-0239-72A | BB00.40-P-0239-72A | |||
FRONT AXLE GEAR
| Number | Designation | Model 257 | Model 290 | ||
|---|---|---|---|---|---|
| BF33.30-P-1001-03F | Hypoid gear oil | Filling capacity | Liter | 0, 55 | 0, 55 |
| Universal hypoid gear oil | BB00.40-P-0235-07A | BB00.40-P-0235-07A | |||
| Overview of axle gear oils | BB00.40-P-0231-01A | BB00.40-P-0231-01A | |||
| Axle gear oils | BB00.40-P-0239-72A | ||||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1046-04A | Loctite 7063 (400 ml) cleaning spray | A 001 986 71 71 09 |
| BR00.45-Z-1110-02A | Quick-acting adhesive Omnifit 100H (50 g) | A 002 989 23 71 |
Drain off
- Remove filling screw (3).
- Remove drain screw (2) and collect hypoid gear oil in a suitable container.
- Remove sealing ring of drain screw (2).
Pour in
- Clean thread of drain screw (2) and filling screw (3) in housing of transfer case (1) free of grease using Loctite 7063 cleaning spray.
- Attach sealing ring on drain screw (2).
Replace seal.
- Screw in drain screw (2) and tighten to specified torque
- Fill hypoid gear oil using
hand pump
.
- Coat first pitch of thread of filling screw (3) with Omnifit 100H quick-acting adhesive.
- Screw in filling screw (3) and tighten to specified torque
.

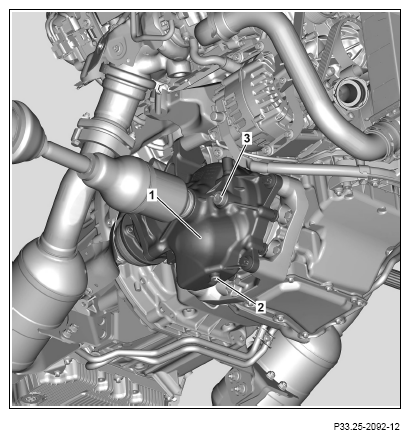

Example illustration
