Remove/Install Front Axle Gear - AR33.30-P-0525MSA

Model 257 with engine 256 with transmission 725.0

with code M005 (Vehicles with 4MATIC/all-wheel drive)

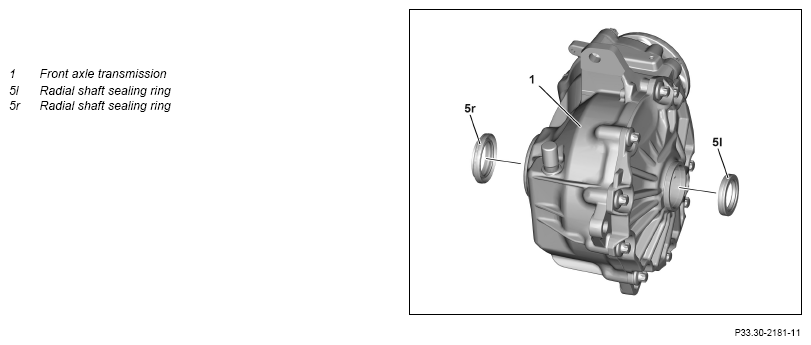

Shown on front axle transmission 175

Shown on front axle transmission 175

Courtesy of MERCEDES-BENZ USA

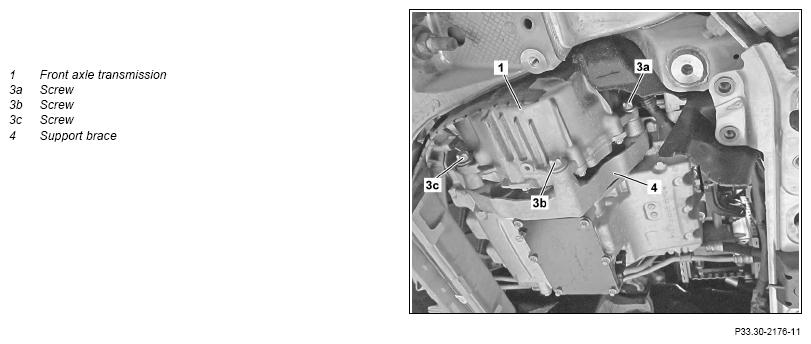

Shown on front axle transmission 175

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove
1	Remove propeller shaft from front axle differential (1).		AR41.10-P-0070MSA
2	Remove drain screw and drain hypoid gear oil from front axle differential (1) and collect with a suitable container.	Model 257 with engine 256 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
		Model 257 with engine 256 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) With VAG 160	AR33.25-P-0300-01LWX
3	Remove rack-and-pinion steering.		AR46.20-P-0600FR
4	Remove right front axle shaft.		AR33.30-P-0620MSA
5	Remove intermediate shaft.		AR33.30-P-0625MSA
6	Remove starter-alternator control unit (N129).	Model 257 with engine 256 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
		Model 257 with engine 256.9 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR15.40-P-0004MSA

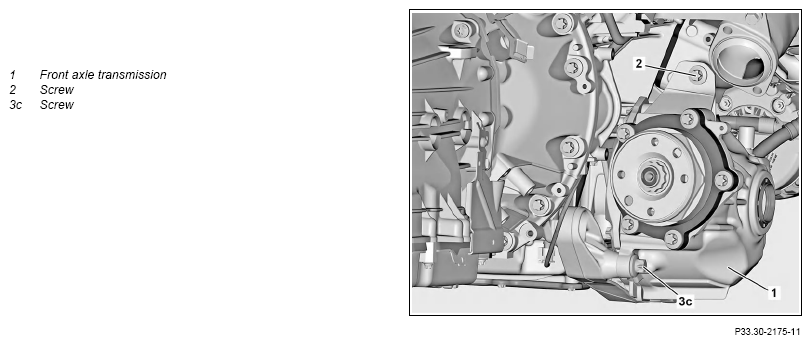

7	Remove screws (2, 3a, 3b, 3c) and place front axle differential (1) onto front axle.
8	Remove support (4).
9	Remove front axle differential (1) downwards.
10	Check that pilot bushing in oil pan is correctly seated.	If problems exist, ↓ Replace pilot bushing.
11	Remove radial shaft sealing rings (5l, 5r).	Do not damage seat of radial shaft sealing rings (5l, 5r). Otherwise the front axle differential (1) will leak. Connect internal extractor and slide hammer puller to threaded rod of extraction tool.
		Internal extractor	Fig 2
		Extraction tool	Fig 7
		Impact extractor	Fig 5
12	Check seat of radial shaft sealing rings (5l, 5r) for damage and galling.	If problems exist, ↓ replace front axle differential (1).
	Install
13	Install radial shaft sealing rings (5l, 5r) using drift.	Replace radial shaft sealing ring (5l, 5r).
		With VAG 160 Drift set	Fig 4
		With VAG 175 Drift	Fig 6
14	Coat sealing lips of radial shaft sealing rings (5l, 5r) with transmission oil.
	Universal hypoid gear oils (specification 235.7	Replace radial shaft sealing rings (5l, 5r).	BB00.40-P-0235-07A
15	Position front axle differential (1) on front axle.
16	Install support (4).	Collar bolt, support to oil pan	*BA33.30-P-1011-03G
17	Attach front axle differential (1) to support (4).		AR33.30-P-0525-06AVG
		Collar bolt, front axle differential to support/oil pan	*BA33.30-P-1006-03G
		Collar bolt, front axle gear to engine support	*BA33.30-P-1007-03G
18	Screw drain screw into front axle differential (1) and tighten.	With VAG 175 Replace seal. Replace drain screw.
		Front axle transmission drain screw	*BA33.30-P-1008-03G
19.1	Fill front axle transmission (1) with hypoid gear oil through the front axle shaft opening.	Model 257 with engine 256 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) With VAG 175
		Hypoid gear oil	*BF33.30-P-1001-03F
		Hand pump	Fig 3
19.2	Fill front axle differential (1) via opening of filling screw with hypoid gear oil.	Model 257 with engine 256 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) With VAG 160
		Replace filling screw. Replace drain screw.	AR33.25-P-0300-01LWX
		Quick-acting adhesive Omnifit 100H (50 g)	*BR00.45-Z-1110-02A
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
		Front axle transmission drain screw	*BA33.30-P-1008-03G
		Front axle transmission filling screw	*BA33.30-P-1014-03G
		Hypoid gear oil	*BF33.30-P-1001-03F
		Hand pump	Fig 3
20	Install starter-alternator control unit (N129).	Model 257 with engine 256 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 257 with engine 256.9 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR15.40-P-0004MSA
21	Install intermediate shaft.		AR33.30-P-0625MSA
22	Install right front axle shaft.		AR33.30-P-0620MSA
23	Install rack-and-pinion steering.		AR46.20-P-0600FR
24	Install propeller shaft onto front axle differential (1).	Only install center and rear lower rear engine compartment paneling again after leak test.	AR41.10-P-0070MSA
25	Check front axle differential (1) for leak tightness.
26	Install center and rear lower engine compartment lining.		AR61.20-P-1105FR

Number	Designation		Model 257
BA33.30-P-1006-03G	Collar bolt, front axle differential to support/oil pan	Nm	65

Number	Designation			Model 257
BA33.30-P-1007-03G	Collar bolt, front axle gear to engine support	Stage 1	Nm	5
		Stage 2	Nm	50
		Stage 3	∠°	95

Number	Designation		Model 257
BA33.30-P-1008-03G	Front axle transmission drain screw	Nm	20

Number	Designation		Model 257
BA33.30-P-1011-03G	Collar bolt, support to oil pan	Nm	60

Number	Designation			Model 257
BA33.30-P-1014-03G	Front axle transmission filling screw	M24	Nm	25

Number	Designation			Model 257
BF33.30-P-1001-03F	Hypoid gear oil	Filling capacity	Liter	0, 55
		Universal hypoid gear oil		BB00.40-P-0235-07A
		Overview of axle gear oils		BB00.40-P-0231-01A
		Axle gear oils		BB00.40-P-0239-72A

Number	Designation	Order number
BR00.45-Z-1046-04A	Loctite 7063 (400 ml) cleaning spray	A 001 986 71 71 09
BR00.45-Z-1110-02A	Quick-acting adhesive Omnifit 100H (50 g)	A 002 989 23 71
