Remove/Install Front Axle Differential Propeller Shaft - AR41.10-P-0070MSA

Model 213.061/261, 238.361/461, 257, 290 with engine 256

with code M005 (Vehicles with 4MATIC/all-wheel drive)

Example illustration

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury. Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Remove
1	Drain coolant from low-temperature circuit.	Model 213.061/261, 238.361/461, 257, 290 with engine 256.9 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR09.41-P-6834MSA
2	Detach coolant line (7) from integrated starter alternator (A79).		AR20.20-P-7441-01RQ

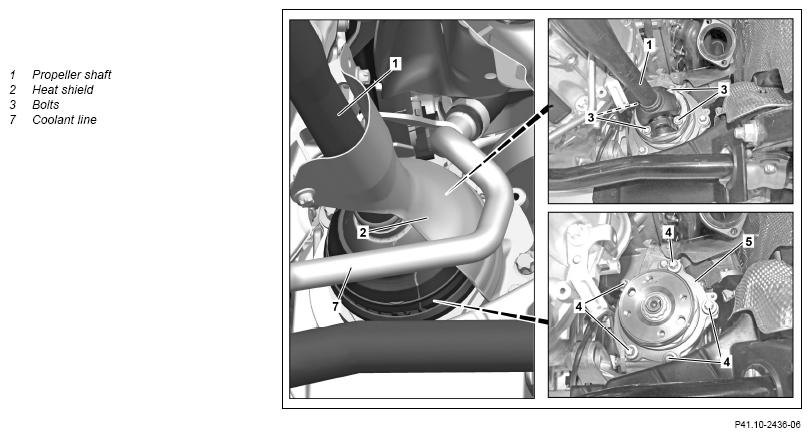

3	Remove heat shield (2).
4	Remove bolts (3).	Counterhold propeller shaft (1) with service brake. Otherwise the needle roller bearings and seals of the propeller shaft (1) will be damaged. Aid of helper required.
5	Remove transfer case (9).	Model 213.061/261, 238.361/461 with engine 256 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR28.10-P-0100OLC
		Model 257, 290 with engine 256 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR28.10-P-0100MSA
6	Mark position of propeller shaft (1) relative to flange of front axle differential.	To be able to reproduce the plant installation position.
7	Take propeller shaft (1) off front axle differential and remove downwards.

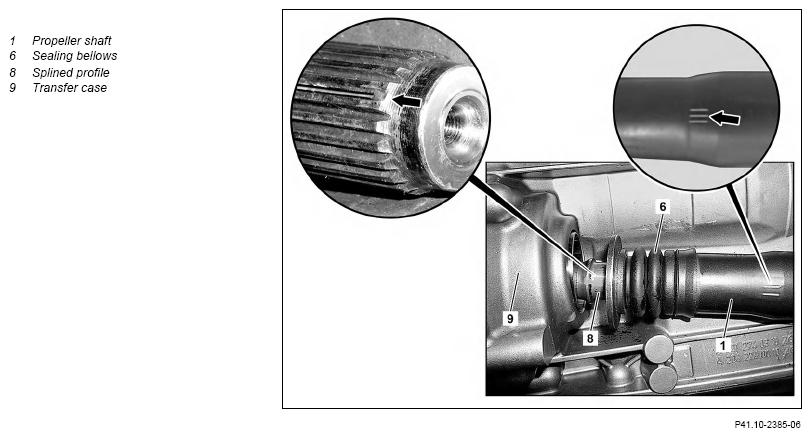

8	Check seal bellows (6) for damage.	Model 213.061/261, 238.361/461, 257, 290 with engine 256 with code M005 (Vehicles with 4MATIC/all-wheel drive) If damage is found, ↓ Install new seal bellows (6).
		Model 213.061/261, 238.361/461, 290 with engine 256 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR41.10-P-0070-01A
		Long-life grease (NLGI grade 2)	BB00.40-P-0266-02A
	Install
9	Grease splined profile (8).	Klueber Microlube GNY 202	*BR00.45-Z-1071-06A
10	Position propeller shaft (1) using the marking on the front axle differential and tighten bolts (3) lightly by hand.	Replace screws/bolts (3).
11	Install transfer case (9).	Model 257, 290 with engine 256 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR28.10-P-0100MSA
		Model 213.061/261, 238.361/461 with engine 256 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR28.10-P-0100OLC
12	Tighten bolts (3).	Counterhold propeller shaft (1) with service brake. Otherwise the needle roller bearings and seals of the propeller shaft (1) will be damaged.
		Aid of helper required.
		Screw/bolt, propeller shaft to front axle gear	*BA33.30-P-1012-03G
13	Install heat shield (2).	Collar bolt, heat shield to holder of heat shield/retaining plate/front axle differential	*BA33.30-P-1009-03G
14	Mount coolant line (7) onto integrated starter alternator (A79).	M6X1	*BA00.10-P-1002-04A
15	Add low-temperature circuit coolant.	Model 213.061/261, 238.361/461, 257, 290 with engine 256.9 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR09.41-P-6834MSA
16	Check transfer case (7) for leak tightness.
17	Install center and rear lower engine compartment lining.	Model 213.061/261, 238.361/461 with engine 256 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR61.20-P-1105LWE
		Model 290 with engine 256 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR61.20-P-1105FRX
		Model 257 with engine 256 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR61.20-P-1105FR
18	Disconnect vehicle from vehicle lift.	Model 213.061/261, 238.361/461 with engine 256 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR00.60-P-0100CW
		Model 257, 290 with engine 256 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR00.60-P-0100-01A
		Vehicle hoist securing tool	Fig 1

METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number	Designation		8.8	10.9
BA00.10-P-1002-04A	M6X1	Nm	9	13

FRONT AXLE GEAR

Number	Designation		Model 213	Model 238
BA33.30-P-1009-03G	Collar bolt, heat shield to holder of heat shield/retaining plate/front axle differential	Nm	8	8

FRONT AXLE GEAR

Number	Designation		Model 257	Model 290
BA33.30-P-1009-03G	Collar bolt, heat shield to holder of heat shield/retaining plate/front axle differential	Nm	8	8

FRONT AXLE GEAR

Number	Designation			Model 213	Model 238
BA33.30-P-1012-03G	Screw/bolt, propeller shaft to front axle gear	Stage 1	Nm	45	45
BA33.30-P-1012-03G	Screw/bolt, propeller shaft to front axle gear	Stage 2	∠°	95	95

FRONT AXLE GEAR

Number	Designation			Model 257	Model 290
BA33.30-P-1012-03G	Screw/bolt, propeller shaft to front axle gear	Stage 1	Nm	45	45
BA33.30-P-1012-03G	Screw/bolt, propeller shaft to front axle gear	Stage 2	∠°	95	95

Fig 1: Identifying Vehicle Hoist Securing Tool (171 589 01 31 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1071-06A	Klueber Microlube GNY 202	A 001 989 44 51 10
