Adjust Camber At The Front Axle - AR40.20-P-0266FR

Model 257

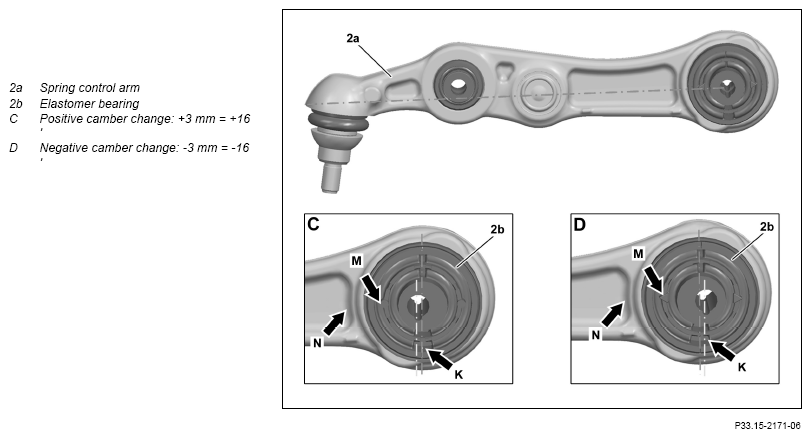

Shown except code M005 (4MATIC) on left spring link (2a)

Courtesy of MERCEDES-BENZ USA

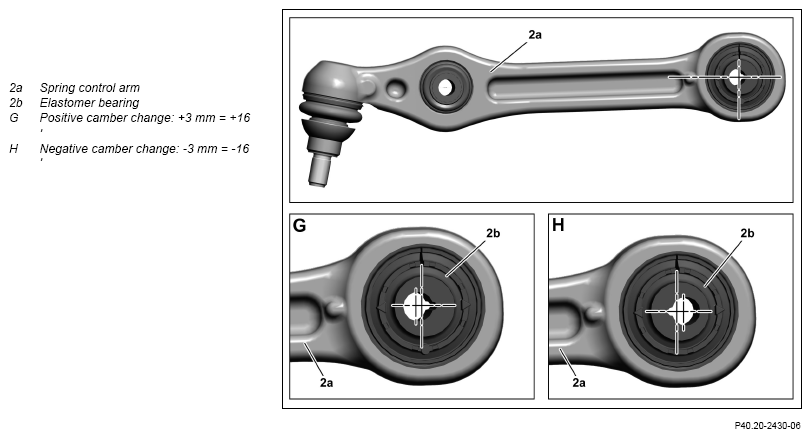

Shown with code M005 (4MATIC) on left spring link (2a)

Courtesy of MERCEDES-BENZ USA

	Measure
1	Carry out input measurement.		AR40.20-P-0200FR
	Check
2	Compare determined values with the specified values.		AR40.20-P-0203FR
	Adjust
3	Remove spring link (2 a).		AR33.15-P-0170FR
4	Install new elastomer bearing (2b) for camber correction.	Model 257 except code M005 (4MATIC)	AR33.15-P-0001-01FR
		Model 257 with code M005 (4MATIC)	AR33.15-P-0001-01FRA
		Model 257 with code M005 (4MATIC) Sleeve	Fig 4
		Model 257 with code M005 (4MATIC) Extraction and insertion tool	Fig 2
		Model 257 except code M005 (4MATIC) Press-in tool	Fig 1
		Model 257 except code M005 (4MATIC) Extraction and installation tool	Fig 5
	Install spring link (2 a).	Model 257 except code M005 (4MATIC) Extraction and insertion tool	Fig 3
5			AR33.15-P-0170FR
	Measure
6	Carry out output measurement.		AR40.20-P-0200FR

Fig 1: Identifying Press-In Tool (211 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Extraction And Insertion Tool (222 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Extraction And Insertion Tool (220 589 06 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Sleeve (203 589 00 14 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Extraction And Installation Tool (221 589 00 43 00)

Courtesy of MERCEDES-BENZ USA
