Replace Tires - Ar40.10-D-1030TS

Model 907

Shown with code RY2 (Tire pressure monitor)

	Information on tires/rims		AH40.10-P-9411-01A
	General information on rim/tire conversions		AH40.10-P-1050-01A
	Remove
1	Remove respective wheel and tire assembly.		AR40.10-D-1100TS
2.1	Remove valve element from valve (43g).	Model 907 except code RY2 (tire pressure monitoring system)
2.2	Remove valve element from tire pressure sensor (1).	Model 907 with code RY2 (tire pressure monitoring system)

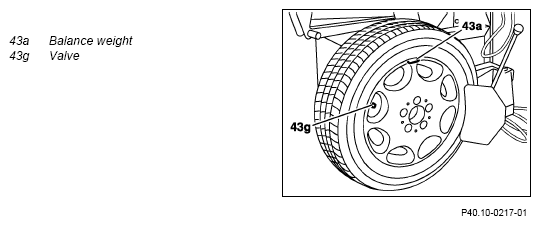

3	Remove wheel balance weights (43a).	Assembly tool	Fig 1

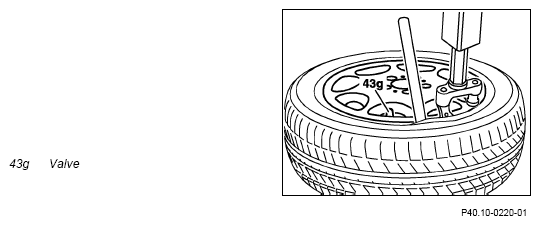

4	Position bead breaker shovel of tire mounting device opposite valve (43g) on tire bead.
	000 588 00 83 00 Tire mounting device	Do not position on the tire side wall, but on the bead flank. The carcass can otherwise be damaged.	WS40.00-P-0006B
5	Pry off tire on inside and outside over safety bead seat of disk wheel.	Model 907 with code RY2 (tire pressure monitoring system) Do not exert any force on the tire pressure sensor (1). Otherwise it will be damaged. Model 907 with code RY2 (tire pressure monitoring system) When prying off the tire bead on the outside of the disk wheel, start opposite the tire pressure sensor (1).
6	Clamp disk wheel on tire mounting device.
7	Apply commercially available tire mounting paste to rim flange and tire beads.

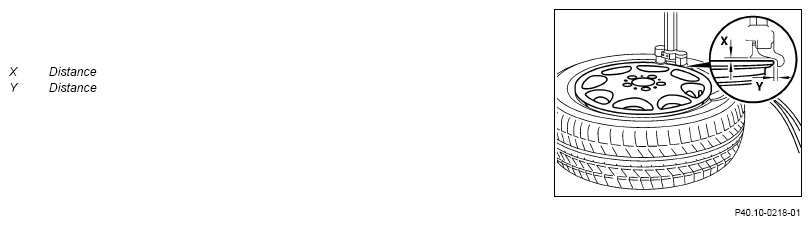

8	Align assembly head at a small distance (X) and distance (Y) to the disc wheel.
9	Position disk wheel at mounting head of tire mounting device.	Model 907 with code RY2 (tire pressure monitoring system) Do not exert any force on the tire pressure sensor (1). Otherwise it will be damaged. Position the disk wheel in the direction of rotation such that the valve (43g) is approx. 10 cm in front of the mounting head.
10	Detach tire.	To do so, pry the tire bead over the assembly lug using an assembly lever.
11	Remove valve (43g).	Model 907 except code RY2 (tire pressure monitoring system)
	Check
12	Check condition of disk wheel.		AR40.10-P-1010-01A

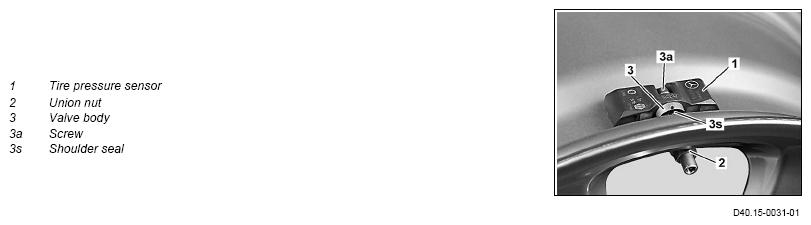

13	Check tire pressure sensor (1), union nut (2), valve body (3), screw (3a) and shoulder seal (3s) in installed condition.	Model 907 with code RY2 (tire pressure monitoring system) Do not remove tire pressure sensor (1). Do not retighten screw (3a) and union nut (2). Otherwise, the tire pressure sensor (1) will be damaged. If the tire pressure sensor (1), the valve body (3) and the shoulder seal (3s) are damaged or if the union nut (2) or screw (3a) is loose, ↓ Replace tire pressure sensor (1).	AR40.15-D-0081TS
	Install
14	Install new valve (43g).	Model 907 except code RY2 (tire pressure monitoring system) Install a new valve (43g) without valve element.
15	Apply commercially available tire mounting paste to rim flange and tire beads.
16	Align assembly head at a small distance (X) and distance (Y) to the disc wheel.
17	Place new tire at angle onto disk wheel, and pull on over the rim flange using tire mounting device.	Model 907 with code RY2 (tire pressure monitoring system) Do not exert any force on the tire pressure sensor (1). Otherwise it will be damaged. Observe the running direction on tires with specified running direction. Put as little stress as possible on bead area.
18	Align light spots of tire and disk wheel with each other.
19	Remove disk wheel with tire from tire mounting device.
20	Inflate tire.	Inflate tire without valve element to a maximum of 3 bar. The tire must slide evenly over the safety bead seat of the disk wheel. If necessary, ↓ Coat the tire beads again with commercially available tire mounting paste.
21.1	Turn new valve element into valve (43g).	Model 907 except code RY2 (tire pressure monitoring system)
21.2	Turn new valve element into tire pressure sensor (1).	Model 907 with code RY2 (tire pressure monitoring system)
22	Correct tire pressure to specified value. Tires - General information		AH40.10-N-1020-01A
			AP40.15-D-4060TS
23	Balance wheel and tire assembly.		AR40.10-D-1040TS
24	Install wheel and tire assembly.		AR40.10-D-1100TS

Fig 1: Assembly Tool (124 589 17 63 00)
